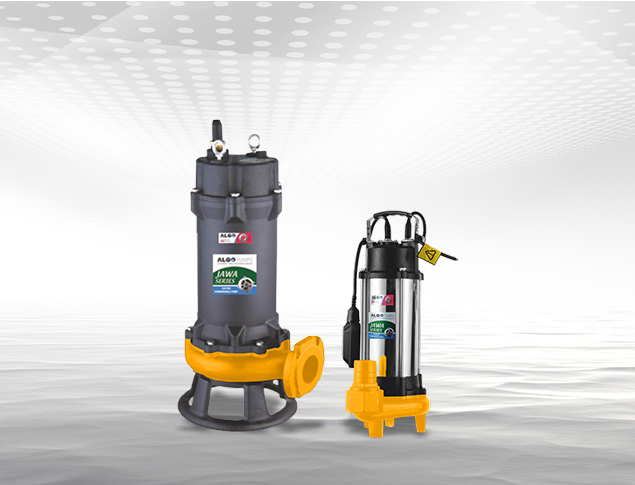

Waste Water Pumps With Cutter
Specification
| Power | 1 to 7.5 HP |
|---|---|
| Speed | 2900rpm |
| Version | 1Ph 230V, 50Hz 3Ph 380V, 50Hz |
| Duty | S1 (Continuous) |
| Protection | IP 68 |
| Insulation Class | F |
| Head Range | 6 to 27m |
| Flow Range | 30 to 1693 lpm |
| Pump Casing | Cast Iron |
|---|---|
| Motor Housing | SS / CI |
| Impeller | High Chrome |
| Shaft | SS / Carbon Steel |
| Cutter Blade | SS |
| Mechanical Seal | Graphite - Silicon Carbide |
| Cable | 8 mtr H07RNF |
| Max. Liquid Temp. | 50°C |
|---|
- Waste water treatment plant
- Medical waste disposal
- Industrial waste disposal
| Model | HP | kW | Outlet Size (mm) | Discharge in lpm | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 8 | 10 | 12 | 14 | 16 | 18 | 21 | 24 | 27 | ||||||
| SC-06/D03 | 0.5 | 0.37 | 50 | Discharge in lpm | 133 | 50 | |||||||||
| SC-10/D07 | 1 | 0.75 | 50 | 240 | 175 | 120 | 30 | ||||||||
| SC-12/D11 | 1.5 | 1.1 | 50 | 280 | 230 | 165 | 115 | ||||||||
| SC-15/D15 | 2 | 1.5 | 50 | 340 | 280 | 215 | 130 | ||||||||
| SC-25/F22 | 3 | 2.2 | 80 | 751 | 680 | 597 | 514 | 415 | 348 | 150 | |||||
| SC-45/F30 | 4 | 3 | 80 | 796 | 733 | 647 | 547 | 440 | 350 | 150 | |||||
| SC-65/F37 | 5 | 3.7 | 80 | 1180 | 1130 | 1012 | 921 | 796 | 531 | 300 | |||||
| SC-65/G40 | 5.5 | 4 | 100 | 1411 | 1170 | 1080 | 970 | 830 | 581 | 332 | |||||
| SC-65/G55 | 7.5 | 5.5 | 100 | 1495 | 1495 | 1411 | 1261 | 1130 | 996 | 747 | 415 | ||||
| SC-A0/G75 | 10 | 7.5 | 100 | 1693 | 1593 | 1394 | 1195 | 896 | 597 | 332 | |||||
Model Name Ends With S-1ph & T-3Ph
