BR Series

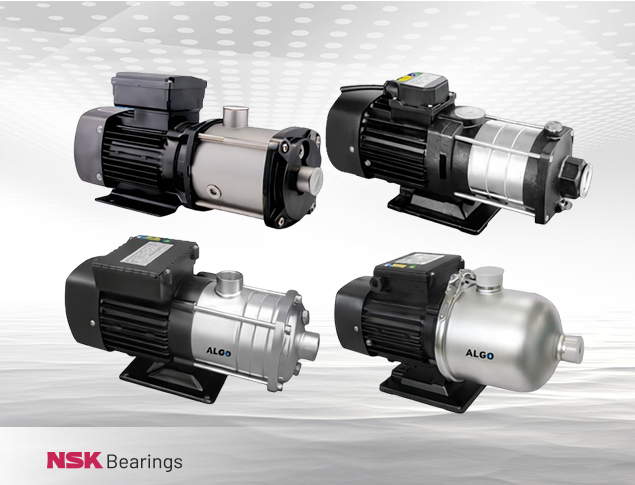

HORIZONTAL MULTISTAGE CENTRIFUGAL PUMPS - BR SERIES
| Power Range | 0.37 – 4 kW / 0.5 – 5.5 HP |
|---|---|
| Version |
1Ph – 230V, 50Hz AC 3Ph – 380 – 415V, 50Hz AC |
| Speed | 2900 RPM |
| Protection | IP 55 |
| Insulation Class | F Class |
| Duty | S1 (continuous) |
| Direction of Rotation | Clockwise viewed from driving end |
| Sealing | Mechanical Seal |
| Max. Liquid Temperature | Std.: –15°C to +70°C, High Temp.: upto 104°C |
| Max. Ambient Temperature | 50°C |
| Max. Operating Pressure | 10 Bar |
| Flow Range | upto 28m³/h |
| Head Range | upto 65m |
| Part Name | BR | BRF | BRD | BRM |
|---|---|---|---|---|
| Pump Casing | Cast Iron | SS 304 | SS 304 | SS 304 |
| Pump Head | Cast Iron | SS 304 | - | SS 304 |
| Impeller | SS 304 | SS 304 | SS 304 | SS 304 |
| Diffuser Casing | SS 304 | SS 304 | SS 304 | SS 304 |
| Pump Shaft | SS 304 | SS 304 | SS 304 | SS 304 |
| Bracket | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Mechanical Seal | Carbon / Ceramic | Carbon / Ceramic | Carbon / Ceramic | Carbon / Ceramic |
| Pump Base | M.S / C.I. | M.S / C.I. | M.S / C.I. | M.S / C.T. |
| Sleeve | SS 304 | SS 304 | SS 304 | SS 304 |
| Clamp Holder | SS 304 | - | SS 304 | - |
| Clamp Plate | SS 304 | - | SS 304 | - |

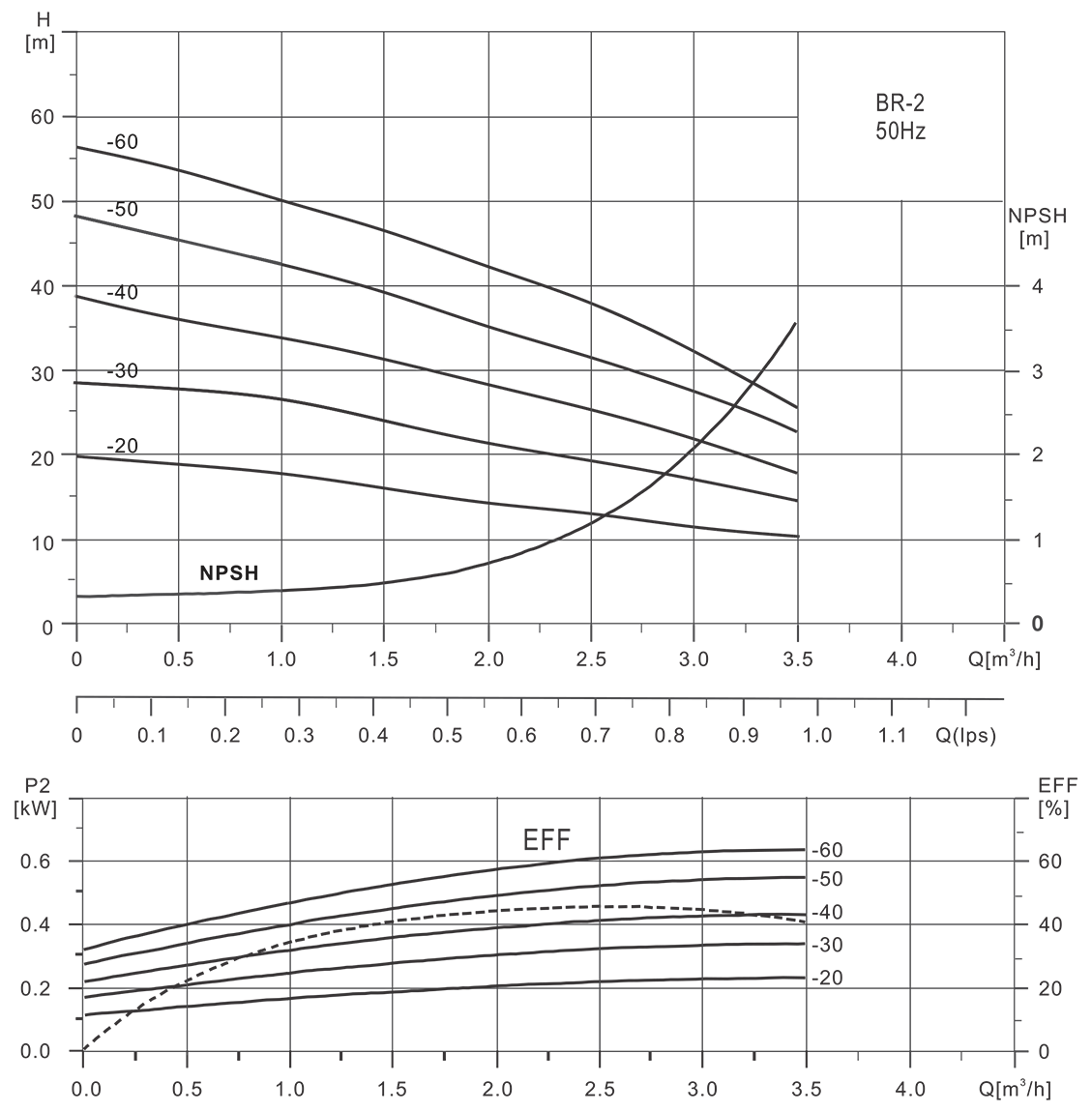

| Model | Motor P2 (kW) |
Q (m³/h) |
1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | |
|---|---|---|---|---|---|---|---|---|---|
| Single Phase | Three Phase | ||||||||
| BR-2/20S | BR-2/20T | 0.37 | H (m) |
18 | 16 | 14 | 13 | 11 | 10 |
| BR-2/30S | BR-2/30T | 0.37 | 27 | 24 | 21 | 20 | 17 | 14 | |
| BR-2/40S | BR-2/40T | 0.55 | 35 | 32 | 28 | 26 | 23 | 17 | |
| BR-2/50S | BR-2/50T | 0.55 | 43 | 40 | 35 | 33 | 28 | 22 | |
| BR-2/60S | BR-2/60T | 0.75 | 50 | 48 | 42 | 38 | 32 | 25 | |

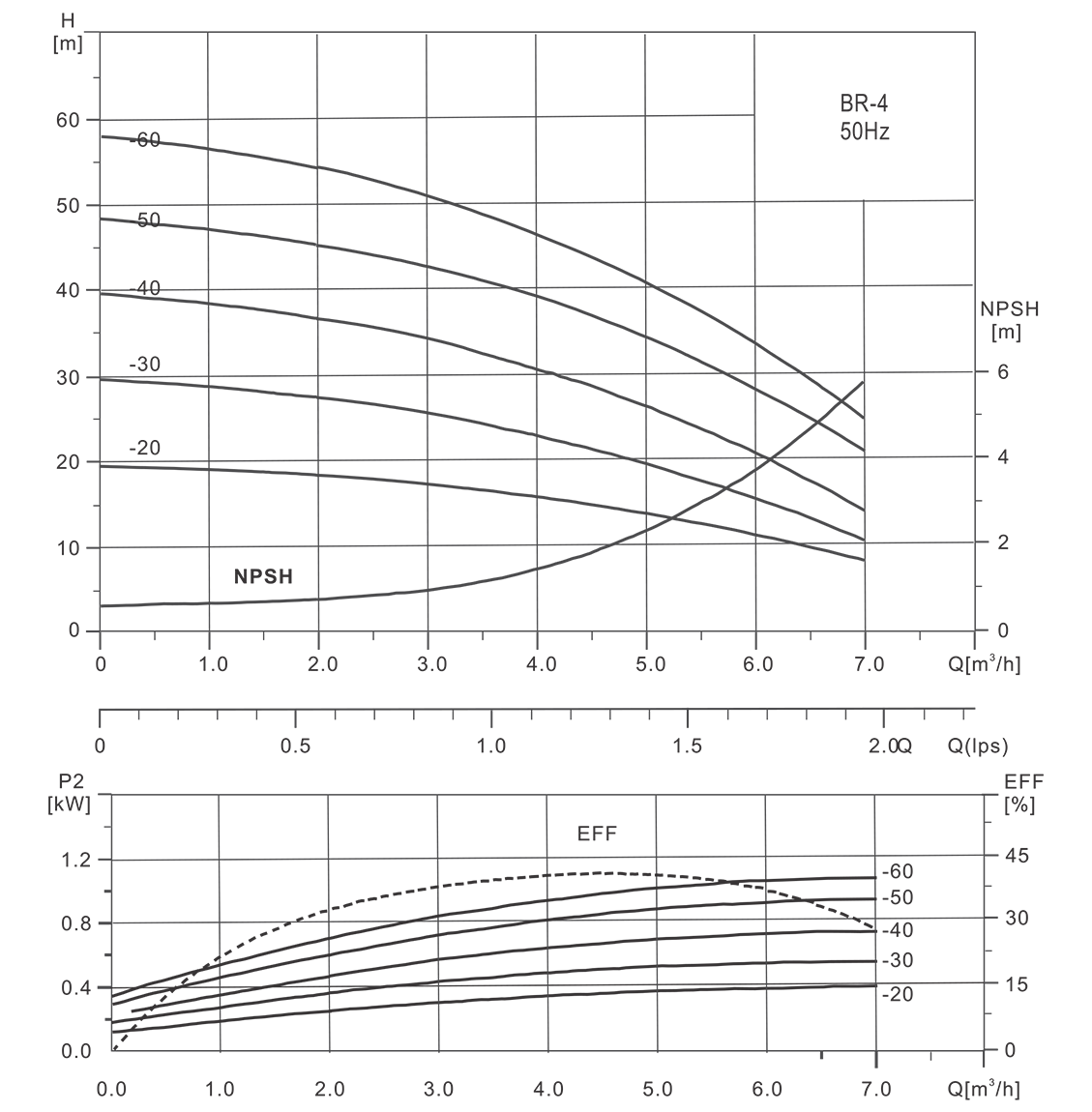

| Model | Motor P2 (kW) |
Q (m³/h) |
2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 7.0 | |
|---|---|---|---|---|---|---|---|---|---|
| Single Phase | Three Phase | ||||||||
| BR-4/20S | BR-4/20T | 0.55 | H (m) |
18 | 16 | 15 | 13 | 10 | 7 |
| BR-4/30S | BR-4/30T | 0.75 | 27 | 25 | 22 | 19 | 15 | 10 | |
| BR-4/40S | BR-4/40T | 0.75 | 36 | 33 | 30 | 26 | 20 | 13 | |
| BR-4/50S | BR-4/50T | 1.0 | 44 | 41 | 38 | 32 | 26 | 20 | |
| BR-4/60S | BR-4/60T | 1.1 | 53 | 50 | 45 | 40 | 33 | 24 | |

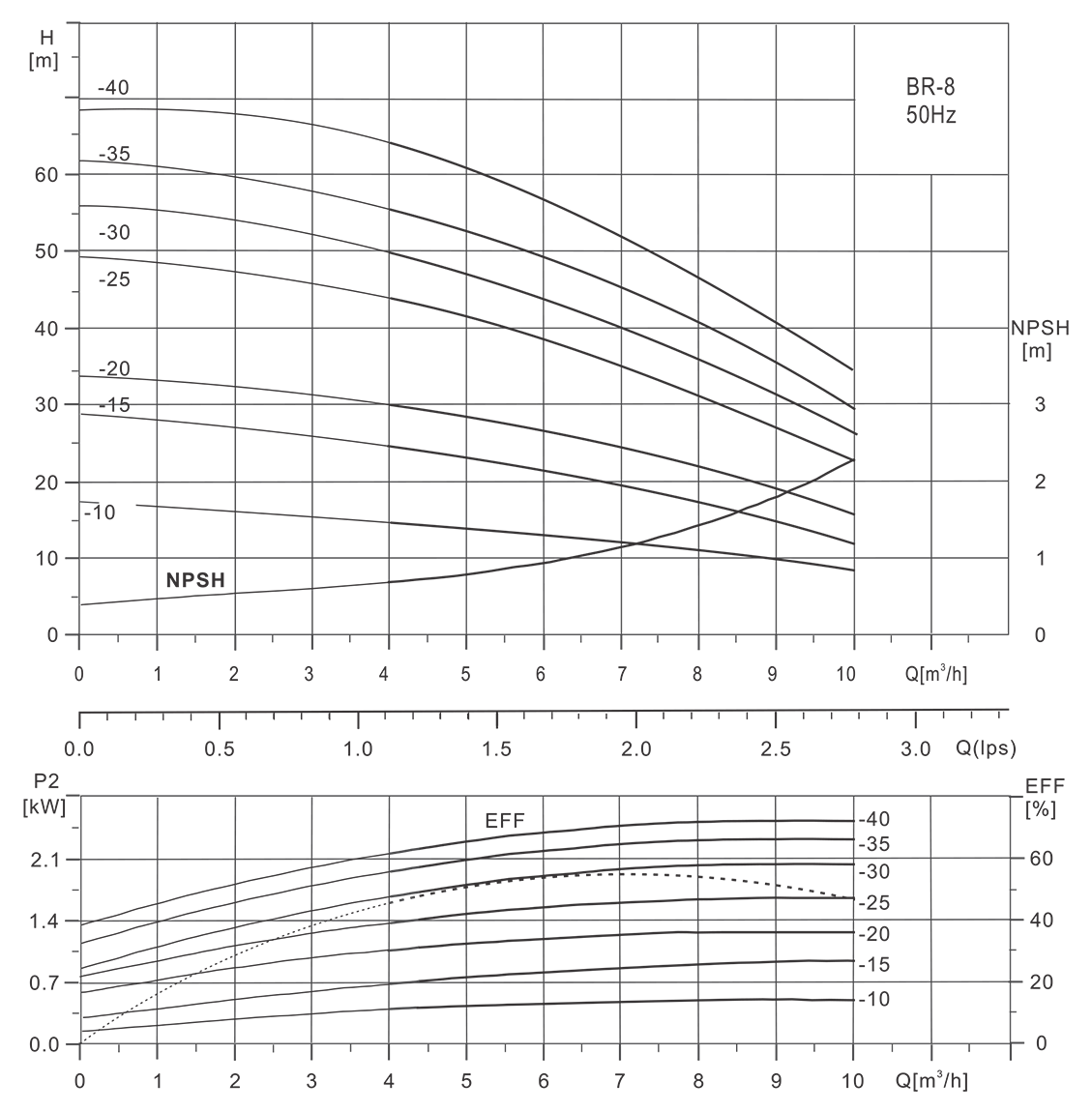

| Model | Motor P2 (kW) |
Q (m³/h) |
4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 | 10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Single Phase | Three Phase | |||||||||
| BR-8/10S | BR-8/10T | 0.55 | H (m) |
15 | 14 | 13 | 12.5 | 12 | 9 | 8 |
| BR-8/15S | BR-8/15T | 0.75 | 25 | 23 | 22 | 21 | 20 | 14 | 12 | |
| BR-8/20S | BR-8/20T | 1.0 | 32 | 29 | 27 | 25 | 24 | 21 | 17 | |
| BR-8/25S | BR-8/25T | 1.5 | 43 | 40 | 38 | 34 | 27 | 25 | 20 | |
| BR-8/30S | BR-8/30T | 1.85 | 50 | 46 | 44 | 40 | 36 | 30 | 26 | |
| BR-8/35S | BR-8/35T | 2.2 | 56 | 51 | 48 | 44 | 43 | 35 | 28 | |
| BR-8/40S | BR-8/40T | 2.2 | 65 | 57.5 | 57 | 50 | 48 | 42 | 34 | |

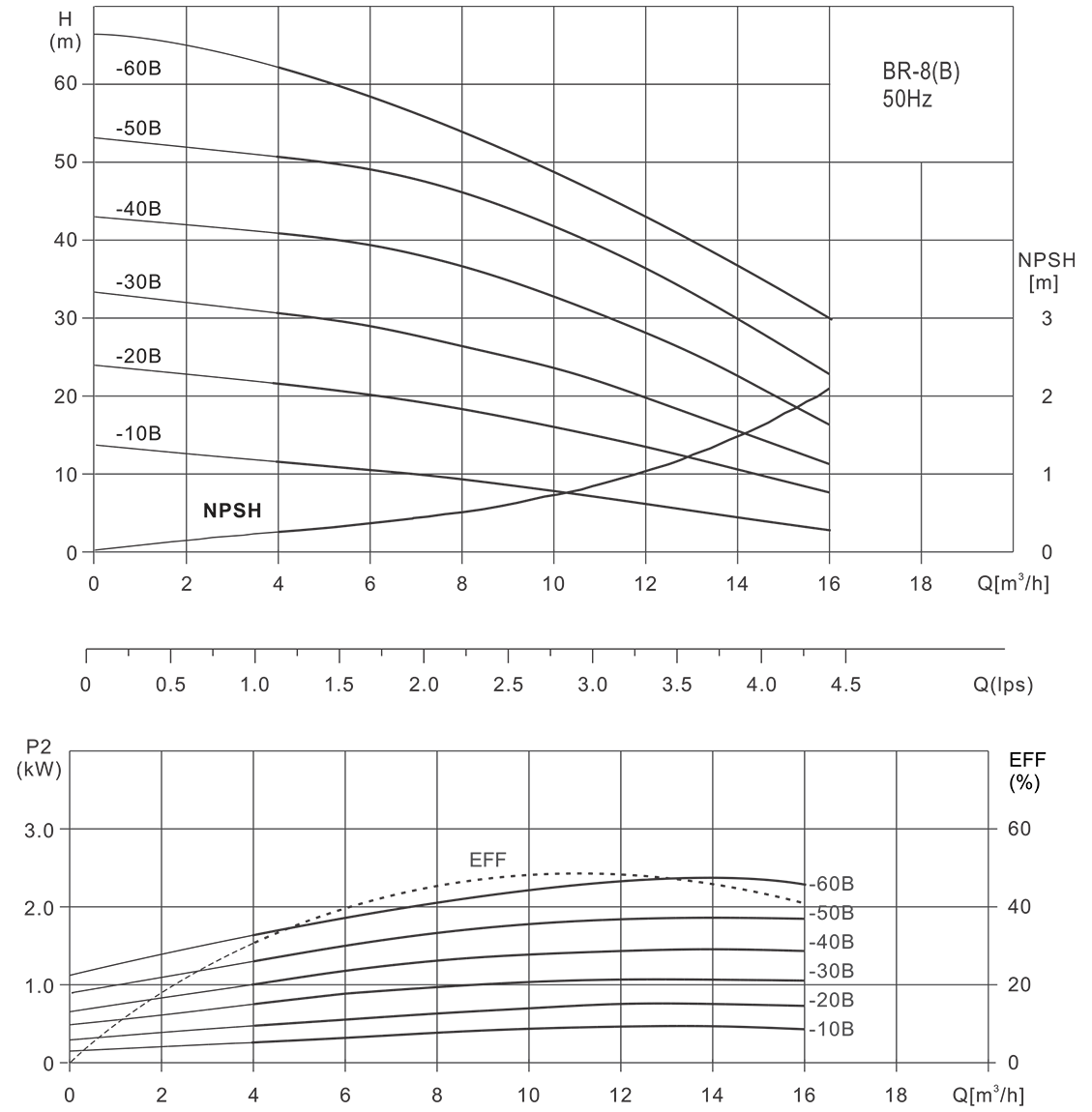

| Model | Motor P2 (kW) |
Q (m³/h) |
4.0 | 6.0 | 8.0 | 10 | 12 | 14 | 16 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Single Phase | Three Phase | |||||||||
| BR-8/10BS | BR-8/10BT | 0.55 | H (m) |
11 | 10 | 9 | 8 | 7 | 6 | 5 |
| BR-8/20BS | BR-8/20BT | 0.75 | 22 | 20 | 19 | 18 | 13 | 11 | 8 | |
| BR-8/30BS | BR-8/30BT | 1.1 | 31 | 29 | 26 | 24 | 20 | 16 | 11 | |
| BR-8/40BS | BR-8/40BT | 1.5 | 41 | 39 | 37 | 33 | 28 | 23 | 17 | |
| BR-8/50BS | BR-8/50BT | 2.2 | 51 | 49 | 46.5 | 42 | 37 | 30 | 23 | |
| BR-8/60BT | 3.0 | 62 | 58 | 52 | 48 | 42 | 36 | 30 | ||

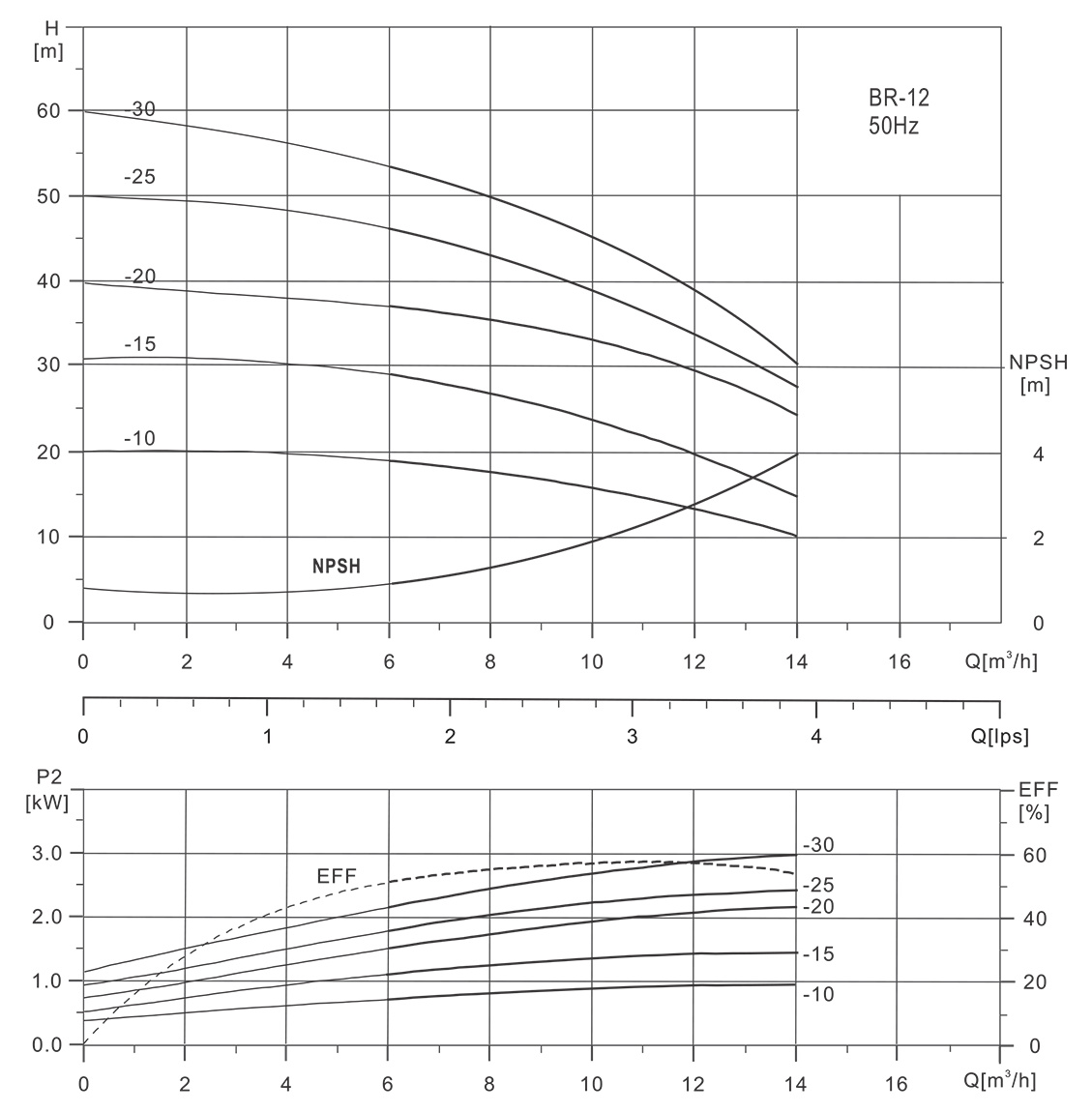

| Model | Motor P2 (kW) |
Q (m³/h) |
6.0 | 7.0 | 8.0 | 9.0 | 10 | 11 | 12 | 13 | 14 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Phase | Three Phase | |||||||||||
| BR-12/10S | BR-12/10T | 1.0 | H (m) |
19 | 18 | 17.5 | 16 | 15.5 | 14 | 13.5 | 12 | 10.5 |
| BR-12/15S | BR-12/15T | 1.5 | 28 | 27 | 26 | 25 | 24 | 22 | 20 | 18 | 15 | |
| BR-12/20S | BR-12/20T | 1.85 | 38 | 36 | 35 | 32 | 31 | 29 | 28 | 24 | 20 | |
| BR-12/25S | BR-12/25T | 2.2 | 47 | 45 | 43 | 41.5 | 39 | 36 | 33.5 | 30.5 | 27 | |
| BR-12/30T | 3.0 | 53.5 | 52 | 50 | 47.5 | 45 | 42 | 39 | 35 | 30 | ||

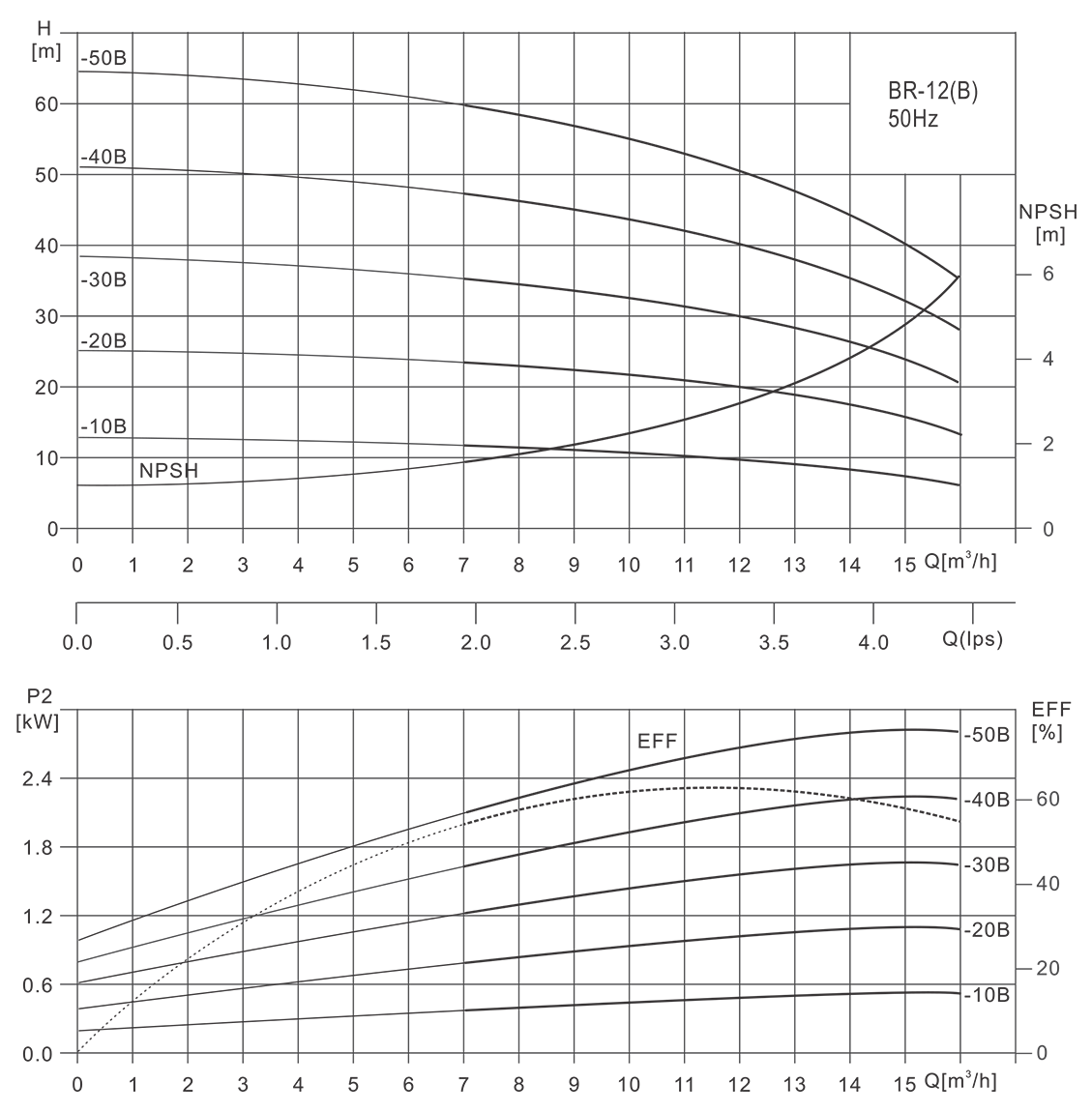

| Model | Motor P2 (kW) |
Q (m³/h) |
7.0 | 8.0 | 9.0 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Phase | Three Phase | ||||||||||||
| BR-12/10BS | BR-12/10BT | 0.75 | H (m) |
12 | 11.5 | 11 | 10.5 | 10 | 9.5 | 9 | 8 | 7 | 6 |
| BR-12/20BS | BR-12/20BT | 1.1 | 23 | 22.5 | 22 | 21 | 20.5 | 19.5 | 18.5 | 17 | 15.5 | 13 | |
| BR-12/30BS | BR-12/30BT | 1.85 | 35 | 34.5 | 33.5 | 32.5 | 31 | 29.5 | 28 | 26 | 23.5 | 20 | |
| BR-12/40BS | BR-12/40BT | 2.2 | 47 | 46 | 45 | 43.5 | 41.5 | 39.5 | 37.5 | 35 | 31.5 | 27.5 | |
| BR-12/50BT | 3.0 | 60 | 58 | 56.5 | 55 | 52.5 | 50 | 47 | 44 | 40 | 35 | ||
| Model | Motor P2 (kW) |
Q (m³/h) |
8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Phase | Three Phase | |||||||||||

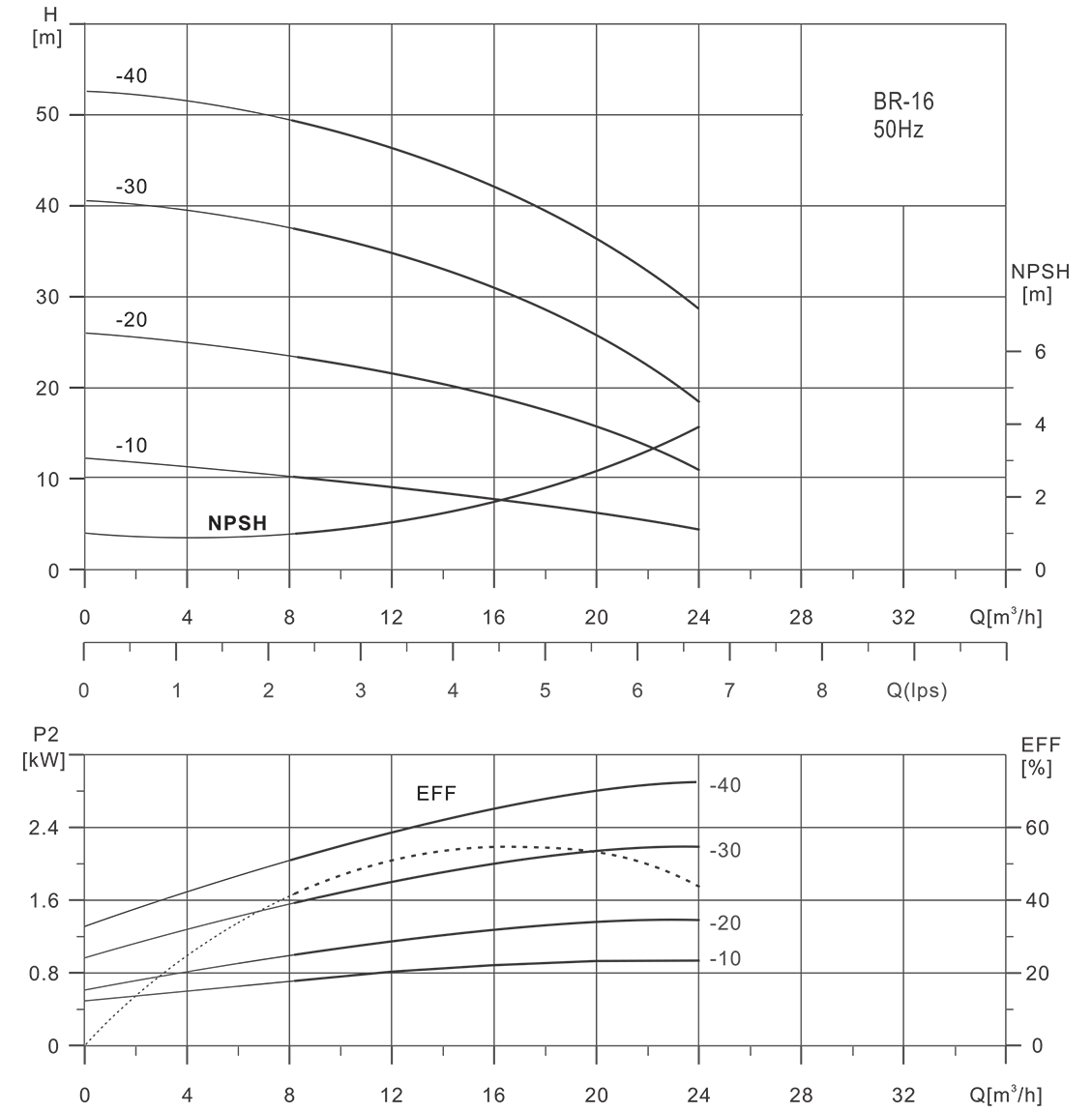

| BR-16/10S | BR-16/10T | 1.0 | H (m) |
12 | 11.5 | 11 | 10.5 | 10 | 9 | 8 | 7 | 6 |
| BR-16/20S | BR-16/20T | 1.5 | 24 | 23 | 22 | 21 | 20 | 19 | 16 | 14 | 12 | |
| BR-16/30S | BR-16/30T | 2.2 | 38 | 36 | 34 | 33 | 30 | 28 | 26 | 23 | 20 | |
| BR-16/40T | 3.0 | 50 | 48 | 46 | 44 | 40 | 38 | 36 | 32 | 28 | ||

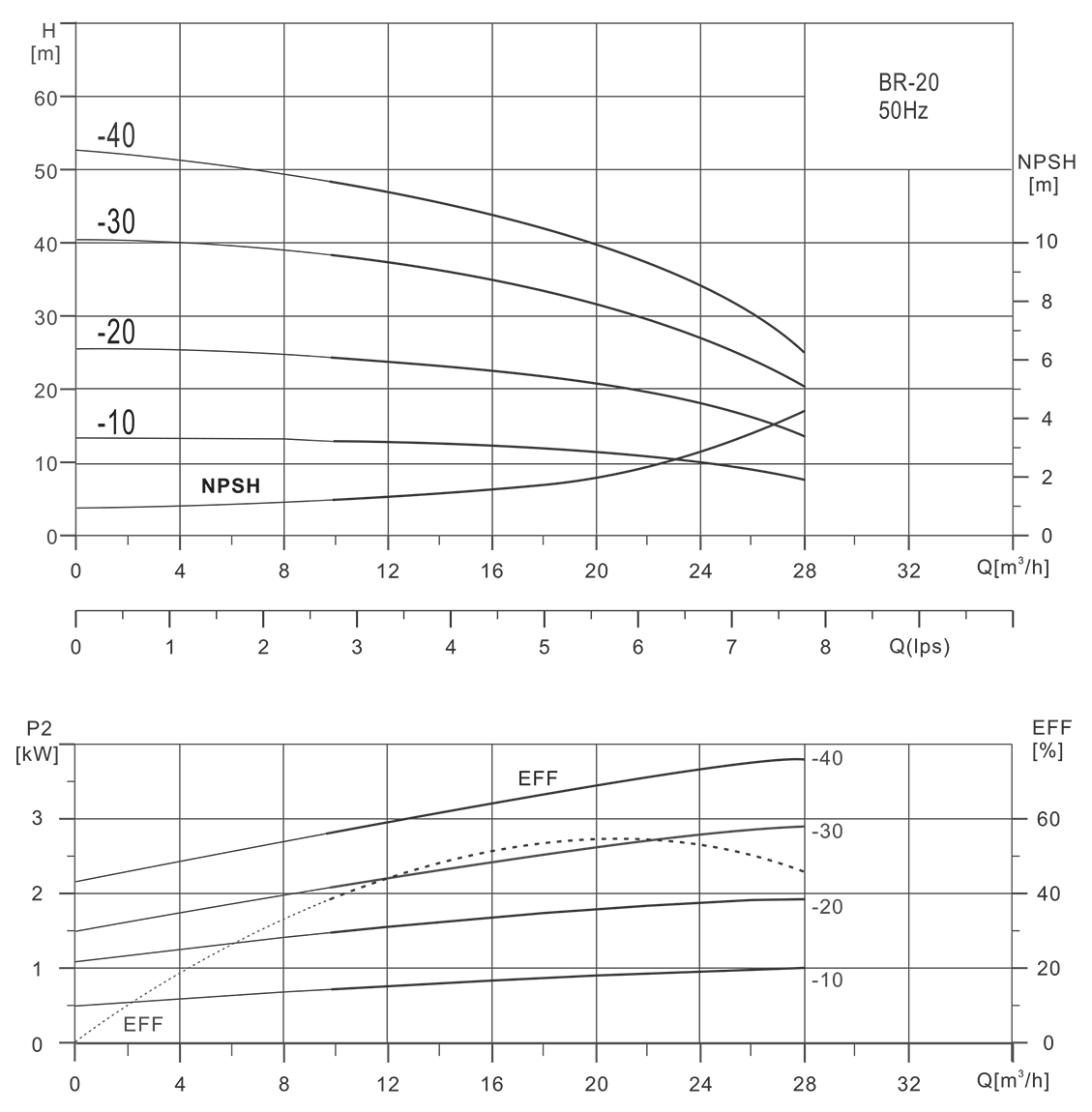

| Model | Motor P2 (kW) |
Q (m³/h) |
10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Phase | Three Phase | ||||||||||||
| BR-20/10S | BR-20/10T | 1.0 | H (m) |
13 | 12.5 | 12 | 11.5 | 11 | 10.5 | 10 | 9 | 8.5 | 7.5 |
| BR-20/20S | BR-20/20T | 1.85 | 25 | 24 | 23 | 22 | 21 | 20 | 18 | 16 | 14 | 12 | |
| BR-20/30T | 3.0 | 39 | 38 | 36 | 35 | 33 | 31.5 | 30 | 27 | 24 | 21 | ||
| BR-20/40T | 4.0 | 50 | 48 | 46 | 44 | 42 | 40 | 36 | 32 | 28 | 24 | ||
