What is submersible pump series?

It is a range of borewell pumps designed for different depths and capacities.

Submersible Pump Series | Borewell Pump Solutions

Materials of Construction

Part Name	6" SS Pumps
Part Name	Type - PS	Type - PT
Impeller	S.S. - 304	S.S. - 316
Diffuser Chamber	S.S. - 304	S.S. - 316
Shaft	S.S. - 304 / 420	S.S. - 316
Suction Housing	S.S. - 304	S.S. - 316
Discharge Housing	S.S. - 304	S.S. - 316
Locking Straps	S.S. - 304	S.S. - 316
Coupling Splines	S.S. - 304 / 420	S.S. - 316
Check Valve Disc	S.S. - 304	S.S. - 316
Check Valve Seat	NBR / VITON	NBR / VITON
Wear Ring	NBR / VITON	NBR / VITON
Split Cone and Nut	S.S. - 304	S.S. - 316
Stop Ring	CARBON	CARBON
Cable Guard	S.S. - 304	S.S. - 316
Strainer	S.S. - 304	S.S. - 316
Intermediate Bearing	NBR / VITON	NBR / VITON

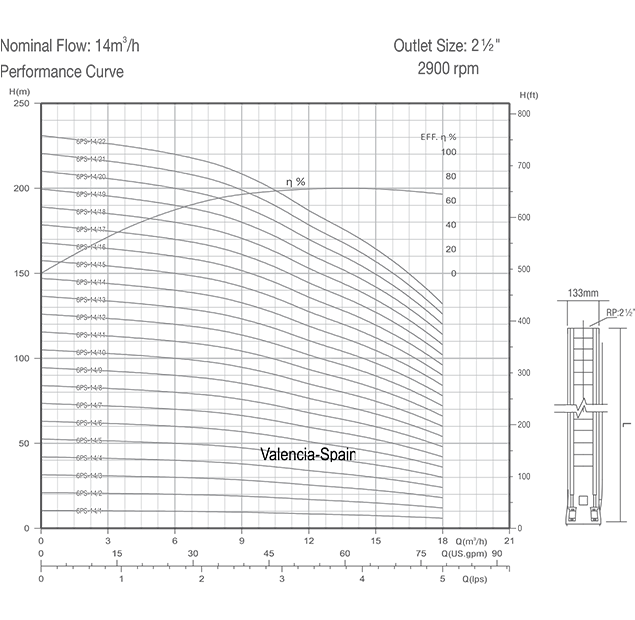

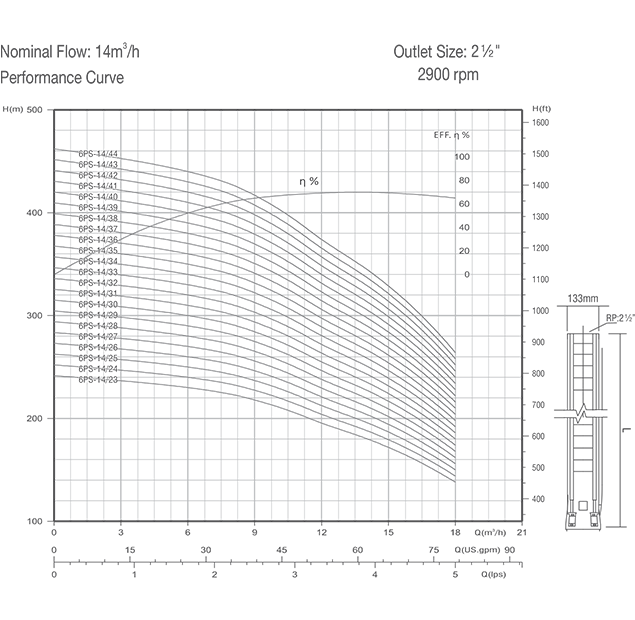

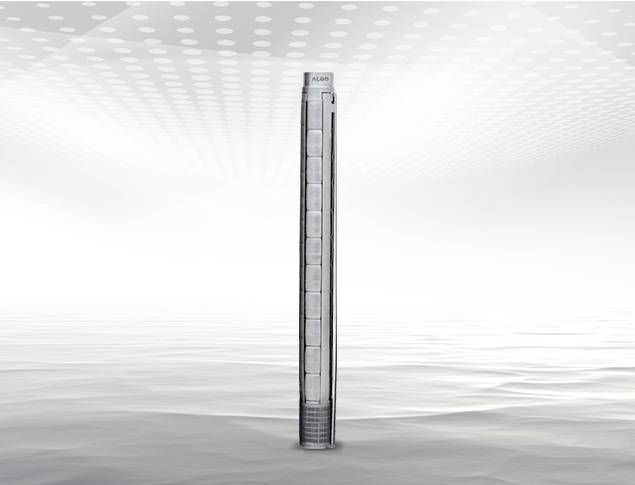

6PS - 14 - Performance Table & Curve

Model	Motor Power		Q(m³/h) Q(lps)	0	10	11	12	14	16	18	Height L (mm)	Weight (kg)
Model	kW	HP	Q(m³/h) Q(lps)	0	2.7	3.05	3.3	3.9	4.4	5	Height L (mm)	Weight (kg)
6PS-14/01	0.55	0.75	Head(m)	11	9	9	9	8	7	6	434	13
6PS-14/02	1.1	1.5		21	18	18	17	16	14	12	494	13.6
6PS-14/03	1.5	2		32	28	27	26	24	21	18	554	14.4
6PS-14/04	2.2	3		42	37	35	34	31	28	24	914	15.2
6PS-14/05	2.2	3		53	46	44	43	39	35	30	674	16.2
6PS-14/06	3	4		63	55	53	51	47	42	36	734	17
6PS-14/07	3	4		74	64	62	60	55	49	42	794	17.6
6PS-14/08	4	5.5		84	74	71	68	63	56	48	854	18.4
6PS-14/09	4	5.5		95	83	80	77	71	63	54	914	19.3
6PS-14/10	5.5	7.5		105	92	89	85	79	70	60	974	20.2
6PS-14/11	5.5	7.5		116	101	98	94	86	78	66	1034	21
6PS-14/12	5.5	7.5		126	110	106	102	94	85	72	1094	21.8
6PS-14/13	7.5	10		137	120	115	111	102	92	78	1154	22
6PS-14/14	7.5	10		147	129	124	119	110	99	84	1214	22.5
6PS-14/15	7.5	10		158	138	133	128	118	106	90	1274	23.2
6PS-14/16	7.5	10		168	147	142	136	126	113	96	1334	24.2
6PS-14/17	9.3	12.5		179	156	151	145	133	120	102	1394	25.7
6PS-14/18	9.3	12.5		189	166	160	153	141	127	108	1454	26.6
6PS-14/19	9.3	12.5		200	175	168	162	149	134	114	1514	27.4
6PS-14/20	9.3	12.5		210	184	177	170	157	141	120	1574	28.2
6PS-14/21	11	15		221	193	186	179	165	148	126	1634	29
6PS-14/22	11	15		231	202	195	187	173	155	132	1694	29.7

Model	Motor Power		Q(m³/h) Q(lps)	0	10	11	12	14	16	18	Height L (mm)	Weight (kg)
Model	kW	HP	Q(m³/h) Q(lps)	0	2.7	3.05	3.3	3.9	4.4	5	Height L (mm)	Weight (kg)
6PS-14/23	11	15	Head(m)	242	211	204	196	181	162	138	1754	30.7
6PS-14/24	11	15		252	221	213	204	188	169	144	1814	31.3
6PS-14/25	13	17.5		263	230	222	213	196	176	150	1874	32.3
6PS-14/26	13	17.5		273	239	230	221	204	183	156	1934	33.1
6PS-14/27	13	17.5		284	248	239	230	212	190	162	1994	33.7
6PS-14/28	13	17.5		294	257	248	238	220	197	168	2054	34.7
6PS-14/29	15	20		305	267	257	247	228	204	174	2114	35.5
6PS-14/30	15	20		315	276	266	255	236	211	180	2174	36.1
6PS-14/31	15	20		326	285	272	264	243	218	186	2234	37.1
6PS-14/32	15	20		336	294	284	272	251	225	192	2294	37.7
6PS-14/33	15	20		347	303	293	281	259	233	198	2354	38.5
6PS-14/34	18.5	25		357	313	301	289	267	240	204	2414	39.5
6PS-14/35	18.5	25		368	322	310	298	275	247	210	2474	40.2
6PS-14/36	18.5	25		378	331	319	306	283	254	216	2534	41.2
6PS-14/37	18.5	25		389	340	328	315	290	261	222	2594	41.9
6PS-14/38	18.5	25		399	349	337	323	298	268	228	2654	42.7
6PS-14/39	18.5	25		410	359	346	332	306	275	234	2714	43.5
6PS-14/40	18.5	25		420	368	355	340	314	282	240	2774	44.3
6PS-14/41	22	30		431	377	363	349	322	289	246	2954	46.7
6PS-14/42	22	30		441	386	372	357	330	296	252	3074	48.3
6PS-14/43	22	30		452	395	381	366	338	303	258	3254	50.6
6PS-14/44	22	30		462	405	390	374	345	310	264	3434	53.2

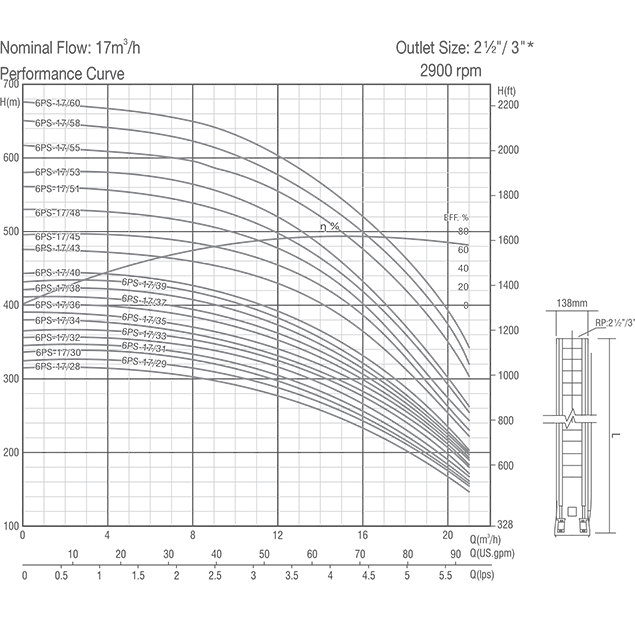

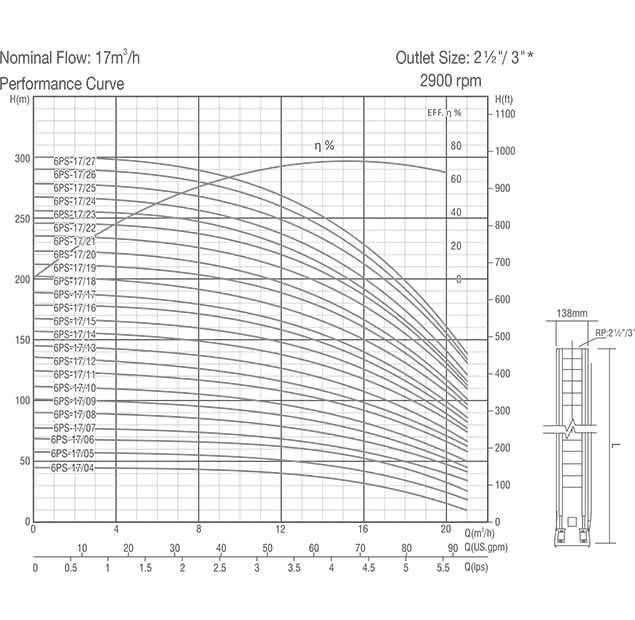

6PS - 17 -Performance Table & Curve

Model	Motor Power		Q(m³/h) Q(lps)	0	8	12	14	16	18	20	Height L (mm)	Weight (kg)
Model	kW	HP	Q(m³/h) Q(lps)	0	2.2	3.3	3.9	4.4	5	5.6	Height L (mm)	Weight (kg)
6PS-17/04	2.2	3	Head(m)	45	41	36	33	29	24	19	499	12
6PS-17/05	3	4		56	51	45	41	37	31	25	560	13
6PS-17/06	4	5.5		68	63	55	50	45	38	31	620	15
6PS-17/07	4	5.5		78	73	68	63	58	50	40	693	14
6PS-17/08	5.5	7.5		90	84	78	73	67	58	48	753	16
6PS-17/09	5.5	7.5		100	96	88	82	75	65	52	814	17
6PS-17/10	5.5	7.5		110	105	97	90	82	70	57	874	18
6PS-17/11	7.5	10		123	117	107	100	91	80	65	935	20
6PS-17/12	7.5	10		133	127	116	108	95	85	70	995	21
6PS-17/13	7.5	10		145	138	126	118	107	93	75	1056	23
6PS-17/14	9.3	12.5		156	149	137	129	118	102	84	1116	24
6PS-17/15	9.3	12.5		168	162	148	138	126	109	89	1177	26
6PS-17/16	9.3	12.5		179	174	158	147	133	116	95	1237	27
6PS-17/17	9.3	12.5		189	183	166	154	140	121	99	1298	29
6PS-17/18	11	15		201	196	176	165	150	130	107	1358	30
6PS-17/19	11	15		212	207	188	176	160	139	112	1419	31
6PS-17/20	11	15		222	218	197	183	166	144	117	1479	33
6PS-17/21	13	17.5		234	230	209	196	177	155	125	1540	34
6PS-17/22	13	17.5		246	241	219	205	187	161	130	1600	36
6PS-17/23	13	17.5		256	252	228	212	192	166	133	1661	37
6PS-17/24	13	17.5		266	262	237	221	200	173	140	1721	39
6PS-17/25	15	20		279	273	248	233	211	184	150	1782	40
6PS-17/26	15	20		290	284	259	243	220	191	155	1842	42
6PS-17/27	15	20		300	295	268	251	228	199	160	1903	43

Model	Motor Power		Q(m³/h) Q(lps)	0	8	12	14	16	18	20	Height L (mm)	Weight (kg)
Model	kW	HP	Q(m³/h) Q(lps)	0	2.2	3.3	3.9	4.4	5	5.6	Height L (mm)	Weight (kg)
6PS-17/28	18.5	25	Head(m)	314	303	276	254	234	202	166	1963	45
6PS-17/29	18.5	25		325	314	290	268	242	211	171	2024	46
6PS-17/30	18.5	25		336	325	298	274	248	218	177	2084	47
6PS-17/31	18.5	25		346	334	304	283	257	224	182	2145	49
6PS-17/32	18.5	25		356	344	314	292	266	230	188	2205	50
6PS-17/33	18.5	25		365	354	324	304	276	241	194	2266	52
6PS-17/34	22	30		380	360	331	310	283	247	200	2326	53
6PS-17/35	22	30		390	368	341	319	291	256	205	2387	55
6PS-17/36	22	30		400	384	352	328	300	261	211	2447	56
6PS-17/37	22	30		410	395	362	338	307	267	217	2508	58
6PS-17/38	22	30		420	407	371	347	314	273	223	2568	59
6PS-17/39	22	30		430	418	382	355	321	280	229	2629	60
6PS-17/40	22	30		442	426	390	365	330	289	235	2689	62
6PS-17/43	26	35		476	459	429	402	363	311	254	2750	63
6PS-17/45	26	35		496	485	454	426	385	329	262	2810	65
6PS-17/48	26	35		530	513	477	446	401	340	274	2871	68
6PS-17/51	30	40		560	538	497	464	418	360	292	3054	70
6PS-17/53	30	40		580	564	520	480	432	370	302	3176	72
6PS-17/55	37	50		618	599	553	516	475	424	367	3674	56.3
6PS-17/58	37	50		650	630	580	544	498	442	384	3854	58.8
6PS-17/60	45	60		671	651	600	560	513	462	395	3974	60.5

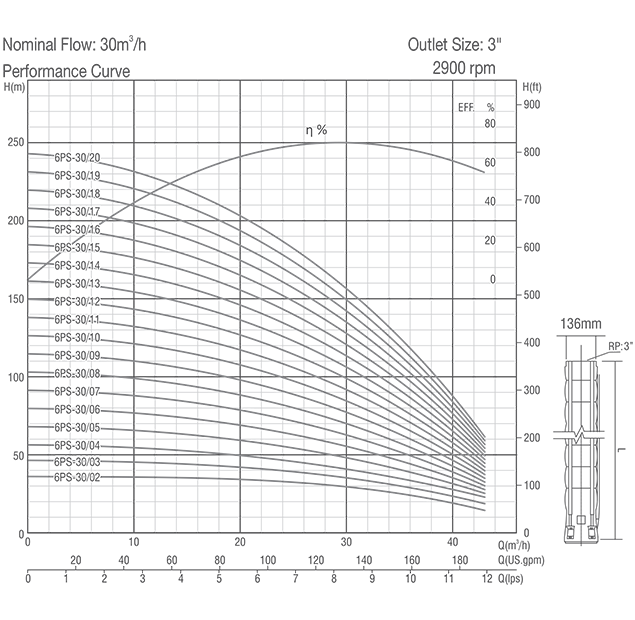

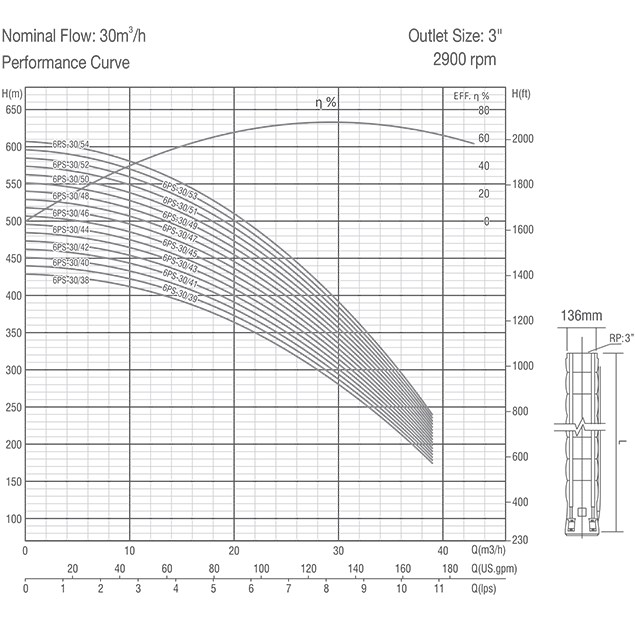

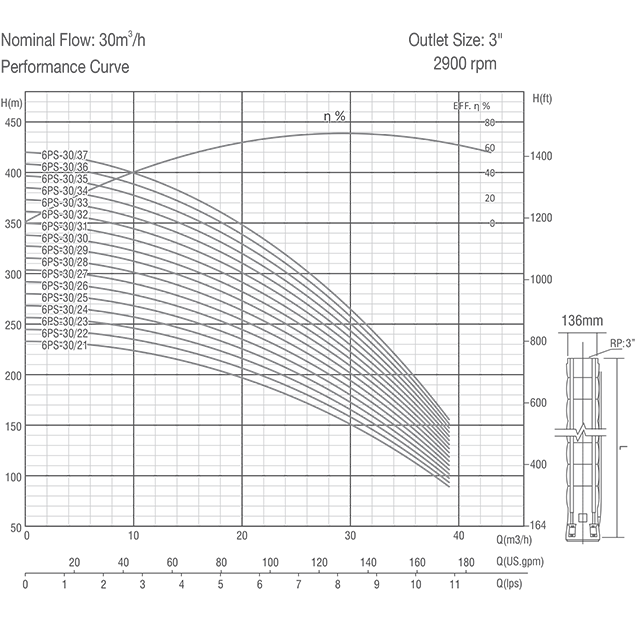

6PS - 30 -Performance Table & Curve

Model	Motor Power		Q(m³/h) Q(lps)	0	14.4	21.6	28.8	36	43.2	Height L (mm)	Weight (kg)
Model	kW	HP	Q(m³/h) Q(lps)	0	4	6	8	10	12	Height L (mm)	Weight (kg)
6PS-30/02	2.2	1.5	Head(m)	23	23	21	20	19	17	445	10
6PS-30/03	3	3		35	33	32	30	28	26	541	12
6PS-30/04	4	5.5		43	39	35	29	20	10	649	13
6PS-30/05	5.5	7.5		55	50	45	37	25	12	744	15
6PS-30/06	5.5	7.5		67	60	54	44	31	15	839	17
6PS-30/07	7.5	10		78	71	63	52	36	17	934	19
6PS-30/08	7.5	10		90	82	73	59	42	19	1029	21
6PS-30/09	9.3	12.5		101	93	82	67	47	22	1124	23
6PS-30/10	9.3	12.5		112	103	92	75	52	24	1219	25
6PS-30/11	9.3	12.5		124	113	101	83	57	24	1314	27
6PS-30/12	11	15		137	124	110	90	62	29	1409	29
6PS-30/13	11	15		148	134	120	98	68	31	1504	31
6PS-30/14	13	17.5		160	146	129	105	73	34	1599	33
6PS-30/15	13	17.5		171	156	139	112	78	36	1694	36
6PS-30/16	15	20		183	166	147	120	83	39	1789	38
6PS-30/17	15	20		194	176	157	128	89	42	1884	40
6PS-30/18	18.5	25		207	187	166	135	94	44	1979	42
6PS-30/19	18.5	25		218	198	175	143	100	47	2074	44
6PS-30/20	18.5	25		229	208	185	151	105	49	2169	46

Model	Motor Power		Q(m³/h) Q(lps)	0	14.4	21.6	28.8	36	39	Height L (mm)	Weight (kg)
Model	kW	HP	Q(m³/h) Q(lps)	0	4	6	8	10	10.8	Height L (mm)	Weight (kg)
6PS-30/21	18.5	25	Head(m)	232	213	190	153	102	89	2264	48
6PS-30/22	22	30		244	223	200	165	108	93	2359	50
6PS-30/23	22	30		257	233	210	172	113	97	2454	52
6PS-30/24	22	30		268	243	219	180	119	101	2549	54
6PS-30/25	22	30		280	254	228	188	125	105	2644	56
6PS-30/26	22	30		291	265	238	196	130	109	2739	58
6PS-30/27	26	35		302	275	247	203	136	113	2834	60
6PS-30/28	26	35		314	286	255	211	142	117	2929	63
6PS-30/29	26	35		327	297	264	219	148	122	3024	65
6PS-30/30	26	35		339	306	273	225	154	126	3119	67
6PS-30/31	26	35		350	317	282	232	159	130	3214	69
6PS-30/32	30	40		360	328	291	240	165	135	3309	71
6PS-30/33	30	40		372	338	300	248	172	139	3404	73
6PS-30/34	30	40		383	345	310	254	178	144	3499	75
6PS-30/35	30	40		397	358	319	261	185	148	3594	77
6PS-30/36	37	50		408	369	328	269	192	152	3689	79
6PS-30/37	37	50		420	379	338	277	197	157	3784	81

Model	Motor Power		Q(m³/h) Q(lps)	0	14.4	21.6	28.8	36	39	Height L (mm)	Weight (kg)
Model	kW	HP	Q(m³/h) Q(lps)	0	4	6	8	10	10.8	Height L (mm)	Weight (kg)
6PS-30/38	37	50	Head(m)	430	394	355	292	211	173	3879	83
6PS-30/39	37	50		440	404	364	299	216	177	3974	124
6PS-30/40	37	50		450	414	373	306	221	181	4069	126
6PS-30/41	37	50		460	424	382	314	227	185	4164	129
6PS-30/42	37	50		471	434	391	321	232	190	4259	132
6PS-30/43	37	50		482	444	400	328	237	194	4354	134
6PS-30/44	45	60		494	454	409	335	242	198	4449	137
6PS-30/45	45	60		506	465	418	343	248	202	4544	139
6PS-30/46	45	60		517	475	427	350	253	208	4639	142
6PS-30/47	45	60		529	485	436	357	258	213	4734	145
6PS-30/48	45	60		540	495	445	364	264	217	4829	147
6PS-30/49	45	60		550	505	454	372	269	221	4924	150
6PS-30/50	55	75		560	515	463	379	275	225	5019	152
6PS-30/51	55	75		572	525	472	386	280	229	5114	155
6PS-30/52	55	75		584	535	481	393	285	234	5209	158
6PS-30/53	55	75		597	546	491	401	291	238	5304	160
6PS-30/54	55	75		608	556	501	408	297	242	5399	163

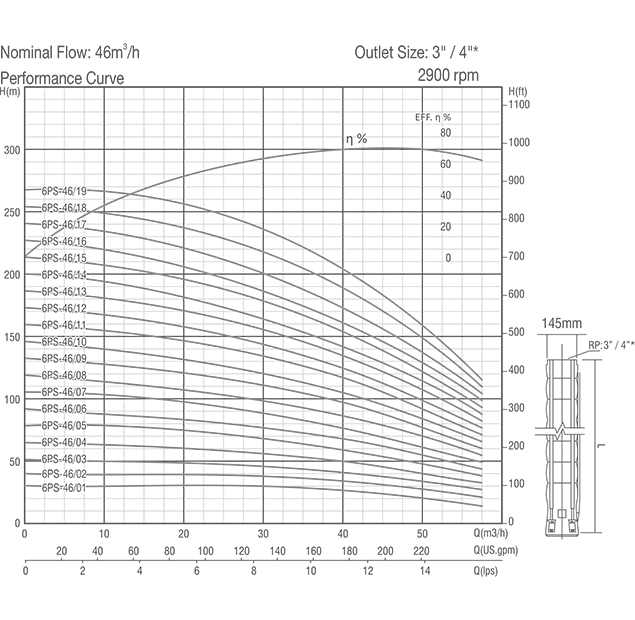

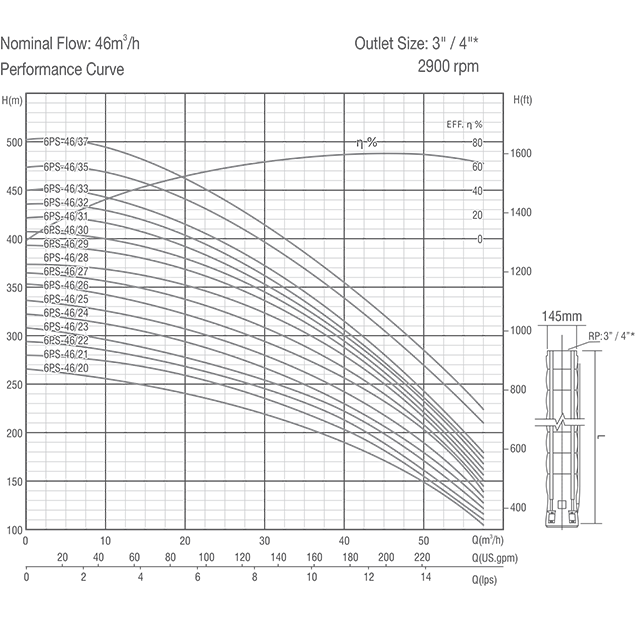

6PS - 46 -Performance Table & Curve

Model	Motor Power		Q(m³/h) Q(lps)	0	28.8	36	46.8	58	Height L (mm)	Weight (kg)
Model	kW	HP	Q(m³/h) Q(lps)	0	8	10	13	16.1	Height L (mm)	Weight (kg)
6PS-46/01	2.2	3	Head(m)	19	17	16	14	12	483	8
6PS-46/02	3	4		27	24	24	20	18	483	8
6PS-46/03	5.5	7.5		37	34	30	23	13	606	12
6PS-46/04	7.5	10		51	43	40	31	18	718	15
6PS-46/05	7.5	10		64	57	50	38	23	830	18
6PS-46/06	9.3	12.5		78	64	59	47	28	942	20
6PS-46/07	11	15		90	77	69	55	34	1054	23
6PS-46/08	13	17.5		104	87	78	64	39	1166	26
6PS-46/09	15	20		119	100	90	73	44	1278	28
6PS-46/10	15	20		131	109	99	80	49	1390	31
6PS-46/11	18.5	25		146	123	111	89	56	1502	34
6PS-46/12	18.5	25		160	132	120	97	62	1614	36
6PS-46/13	22	30		172	145	131	106	68	1726	39
6PS-46/14	22	30		186	155	141	116	73	1838	42
6PS-46/15	22	30		200	170	152	123	78	1950	44
6PS-46/16	26	35		213	177	160	132	85	2062	47
6PS-46/17	26	35		227	187	169	139	90	2174	49
6PS-46/18	30	40		239	203	185	152	96	2286	52
6PS-46/19	30	40		253	228	207	162	102	2398	55

Model	Motor Power		Q(m³/h) Q(lps)	0	28.8	36	46.8	58	Height L (mm)	Weight (kg)
Model	kW	HP	Q(m³/h) Q(lps)	0	8	10	13	16.1	Height L (mm)	Weight (kg)
6PS-46/20	30	40	Head(m)	264	222	204	167	104	2510	57
6PS-46/21	37	50		280	239	218	175	110	2622	60
6PS-46/22	37	50		293	250	229	182	116	2734	63
6PS-46/23	37	50		309	259	238	191	121	2846	65
6PS-46/24	37	50		321	270	248	200	127	2958	68
6PS-46/25	45	60		336	283	260	210	133	3070	71
6PS-46/26	45	60		352	298	272	220	139	3182	73
6PS-46/27	45	60		363	312	287	231	144	3294	76
6PS-46/28	45	60		373	328	301	240	150	3406	79
6PS-46/29	45	60		392	341	311	249	156	3518	81
6PS-46/30	45	60		408	350	319	253	162	3630	84
6PS-46/31	55	75		421	358	325	260	167	3742	86
6PS-46/32	55	75		435	368	332	263	173	3854	89
6PS-46/33	55	75		450	379	341	271	180	3966	92
6PS-46/35	55	75		473	401	365	296	210	4078	95
6PS-46/37	63	85		502	422	387	310	225	4190	98

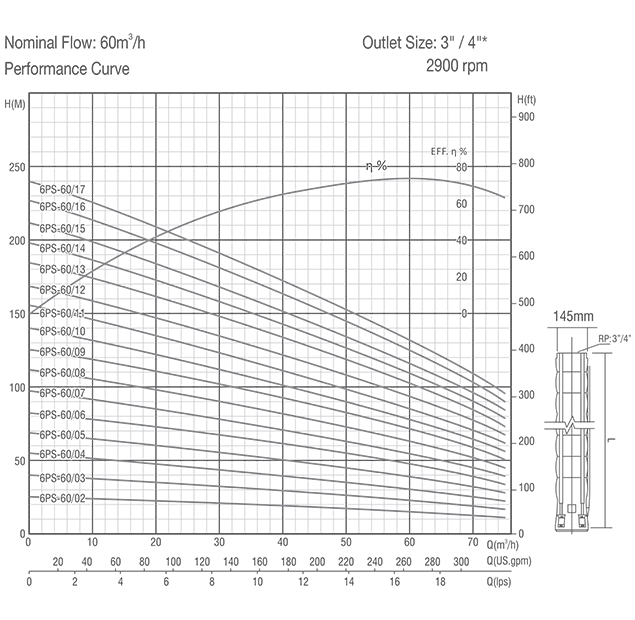

6PS - 60 -Performance Table & Curve

Model	Motor Power		Q(m³/h) Q(lps)	0	20	40	50	60	70	75	Height L (mm)	Weight (kg)
Model	kW	HP	Q(m³/h) Q(lps)	0	5.55	11.11	13.89	16.67	19.44	20.83	Height L (mm)	Weight (kg)
6PS-60/02	4	5.5	Head(m)	25	22	19	17	14	12	11	494	10
6PS-60/03	5.5	7.5		40	35	29	26	22	18	16	606	12
6PS-60/04	7.5	10		54	48	39	35	30	24	21	718	15
6PS-60/05	9.3	12.5		69	60	50	44	38	30	26	830	18
6PS-60/06	11	15		82	72	61	54	45	36	31	942	20
6PS-60/07	13	17.5		97	85	70	62	53	43	37	1054	23
6PS-60/08	15	20		111	98	81	72	61	49	42	1166	26
6PS-60/09	18.5	25		124	110	92	82	71	55	47	1278	28
6PS-60/10	18.5	25		140	122	101	90	78	61	52	1390	31
6PS-60/11	22	30		155	134	111	99	84	67	57	1502	34
6PS-60/12	22	30		167	147	121	108	93	74	63	1614	36
6PS-60/13	26	35		183	161	133	118	102	80	69	1726	39
6PS-60/14	26	35		198	172	143	126	110	86	74	1838	42
6PS-60/15	26	35		211	183	154	134	116	92	80	1950	44
6PS-60/16	30	40		227	198	166	144	125	99	86	2062	47
6PS-60/17	30	40		240	204	172	153	132	109	92	2174	50

Model	Motor Power		Q(m³/h) Q(lps)	0	30	43	58	72	76	Height L (mm)	Weight (kg)
Model	kW	HP	Q(m³/h) Q(lps)	0	8.3	11.9	16.2	20	21.1	Height L (mm)	Weight (kg)
6PS-60/18	37	50	Head(m)	254	217	192	150	90	73	2286	52
6PS-60/19	37	50		269	225	200	156	96	79	2398	55
6PS-60/20	37	50		282	239	209	162	102	85	2510	58
6PS-60/21	37	50		298	252	222	172	108	91	2622	60
6PS-60/22	45	60		319	268	233	181	115	97	2734	63
6PS-60/24	45	60		338	283	250	193	121	103	2958	68
6PS-60/26	55	75		368	308	270	210	127	109	3182	73
6PS-60/28	55	75		392	331	281	223	133	115	3406	79
6PS-60/30	55	75		418	352	309	245	140	120	3630	84

6'' Alinox

Materials of Construction
