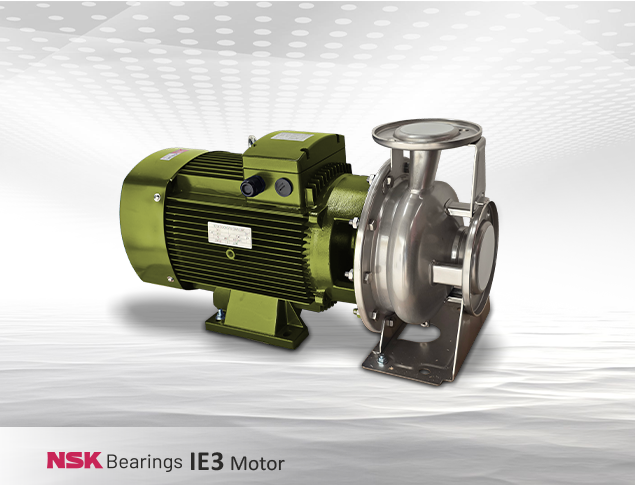

CMS Series
Specification
| Power | 1.5 & 25 HP |
|---|---|
| Speed | 2900 rpm |
| Version | 3Ph 380V–415V, 50Hz |
| Degree of Protection | IP 55 |
| Class Of Insulation | F / B |
| Type Of Duty | S1 (Continuous) |
| Head Range | 8 to 73m |
| Flow Range | 50 to 3320 lpm |
| Pump Casing | SS 304 / SS316 |
|---|---|
| Motor Body | Aluminium / Cast Iron |
| Impeller | SS 304 / SS316 |
| Shaft | SS 304 |
| Mechanical Seal | Carbon Ceramic |
| Bearing | Double Shielded Ball Bearing |
| Model | HP | kW | Discharge in lpm | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 100 | 150 | 200 | 250 | 300 | 360 | ||||
| CMS-32/160B | 1.5 | 1.1 | 21 | 20 | 18.5 | 16.5 | 15 | 12.5 | 8 | |
| CMS-32/160A | 2 | 1.5 | 26 | 24.5 | 22.5 | 20 | 18.5 | 15 | 9.5 | |
| CMS-32/160 | 3 | 2.2 | 30.5 | 29.5 | 27.5 | 26 | 24 | 22.5 | 18 | |
| CMS-32/200B | 4 | 3 | 38 | 37 | 35 | 34 | 32 | 30 | 26 | |
| CMS-32/200A | 5.5 | 4 | 51.5 | 50 | 48 | 45 | 43 | 41 | 30 | |
| CMS-32/200 | 7.5 | 5.5 | 62 | 60 | 58 | 54 | 52 | 47 | 37 | |
| Model | HP | kW | Discharge in lpm | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 160 | 250 | 330 | 420 | 500 | 580 | 660 | ||||
| CMS-40/125B | 2 | 1.5 | 20 | 19 | 17.5 | 16 | 13 | 10.5 | |||
| CMS-40/125A | 3 | 2.2 | 27 | 26 | 24 | 22 | 20 | 17 | 14 | ||
| CMS-40/125 | 4 | 3 | 31 | 30 | 29 | 27 | 25 | 22 | 18 | ||
| CMS-40/160 | 5.5 | 4 | 39 | 38 | 36.5 | 34 | 31 | 28 | 24 | 19 | |
| CMS-40/200B | 7.5 | 5.5 | 47 | 46 | 45.5 | 44 | 41 | 38 | 34 | 30 | |
| CMS-40/200A | 10 | 7.5 | 52 | 51.5 | 51 | 50 | 48 | 45 | 42 | 38 | |
| CMS-40/200 | 15 | 11 | 69 | 69 | 68.5 | 68 | 68 | 66 | 64 | 60 | |
Application
Food Process Industem
Industrial Water Supply
Pressure Booster System
