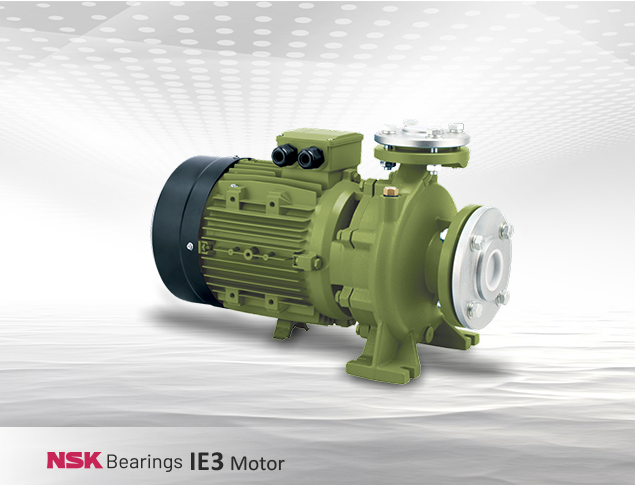

Centrifugal Monoblock Pumps

Specification

Power 1.5 & 25 HP
Speed 2900 rpm
Version 3Ph 380V-415V, 50Hz
Degree of Protection IP55
Class of Insulation F / B
Type of Duty S1 (Continuous)
Head Range 8 to 73 m
Flow Range 50 to 3320 lpm
Get Quote
Pump Casing SS 304 / SS 316
Motor Body Aluminium / Cast Iron
Impeller SS 304 / SS 316
Shaft SS 304
Mechanical Seal Carbon Ceramic
Bearing Double Shielded Ball Bearing

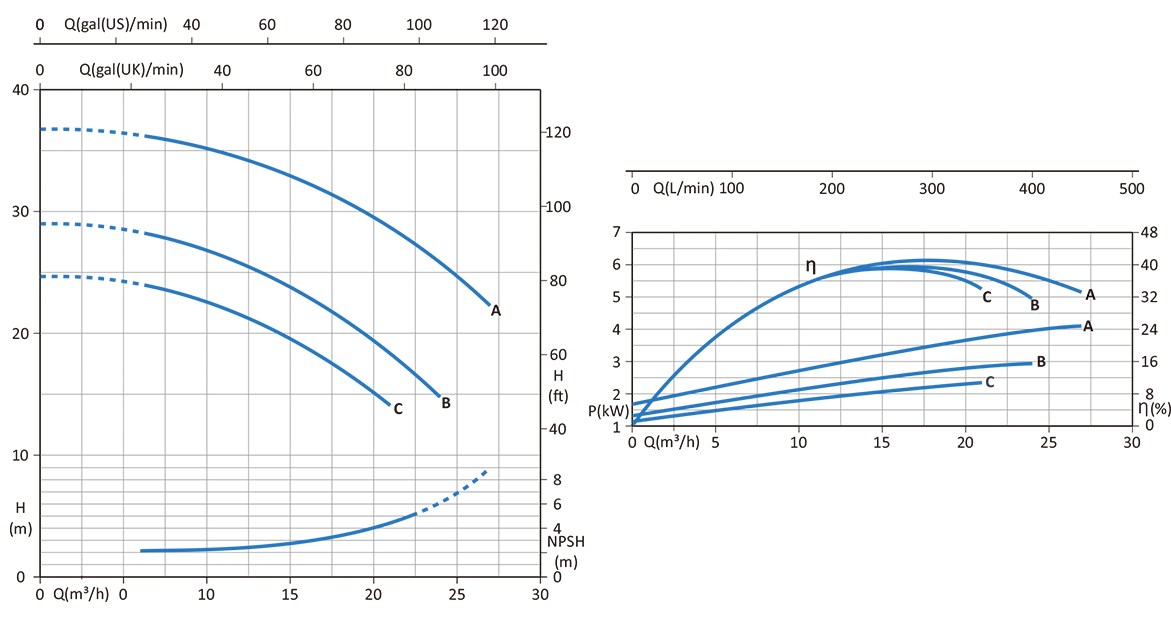

Model HP kW Discharge in lpm
150 200 250 300 350 400 450 500 550 600
CM-32/160B 3 2.2 Head in Meter 26 25 24 22 21
CM-32/160A 4 3 32 31 30 29 27 25
CM-32/160 5.5 4 40 39 38 37 34 33
CM-32/200B 7.5 5.5 42 41 40 39 38 36
CM-32/200A 10 7.5 49 49 48 47 46 44 42
CM-32/200 15 11 60 60 59 58 58 56 55 54
CM-32/250B 10 7.5 65 65 65 63 60 58 56
CM-32/250A 15 11 78 77 77 75 73 68 64 58
CM-32/250 20 15 94 94 93 93 93 91 88 85 82 80

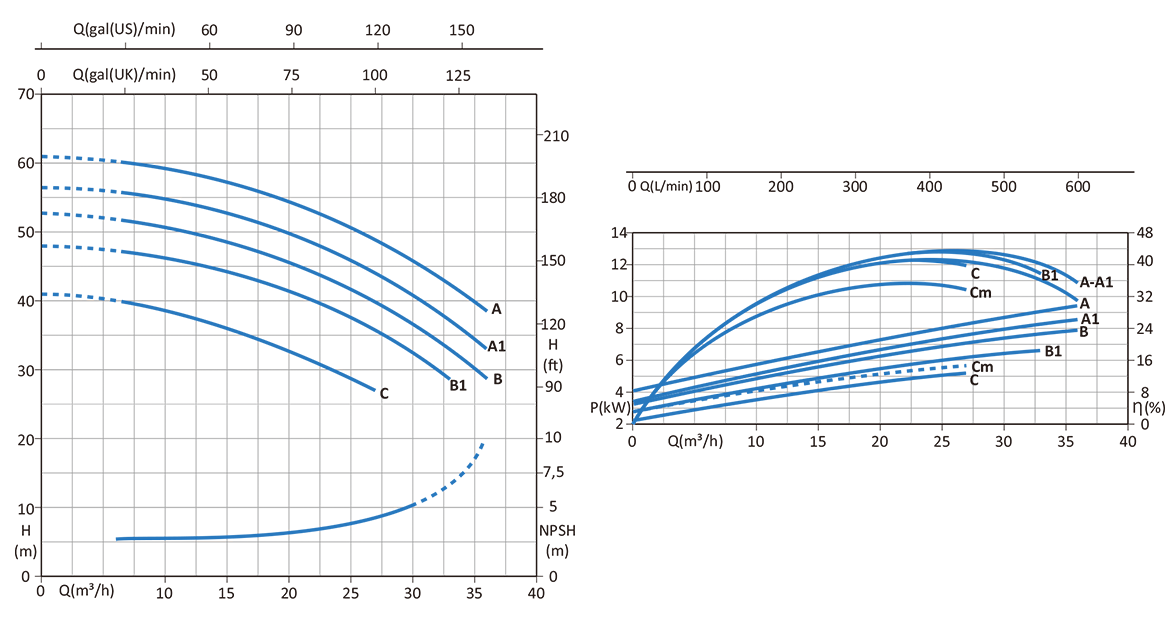

Model P2 P1
kW		 3Ph
400V
50Hz
A		 Q (m³/h - L/min)
HP kW 0 6 7.5 9 12 15 18 21 24 27 30 33 36
0 100 125 150 200 250 300 350 400 450 500 550 600
CM32-200 C 5.5 4 5.2 9.4 41 40 39.5 38.9 37.5 36 34.2 32.2 30 27 - - -
CM32-200 B1 7.5 5.5 6.6 11.3 48 47.5 47.1 46.6 45.5 44.3 42.5 40.7 38.5 35.7 32.5 28.6 -
CM32-200 B 7.5 5.5 8.2 13.7 52.8 52 51.5 51 50 48.5 46.8 45 42.7 40.1 37 33.3 28.7
CM32-200 A1 10 7.5 8.5 14.6 56.5 56 55.6 55.2 54 52.8 51 49.2 47 44.2 41 37.1 33
CM32-200 A 10 7.5 9.9 16.5 61 60.5 60.1 59.6 58.5 57.2 55.5 53.7 51.5 49 46.2 42.7 38.5

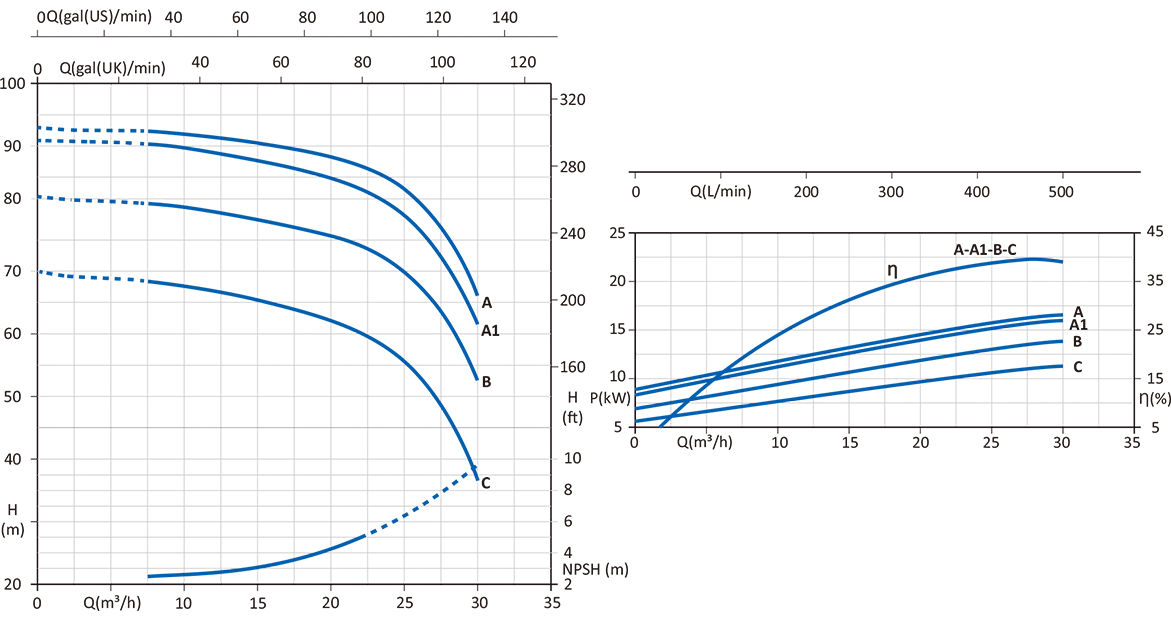

Model P2 P1
kW
3~		 3Ph
400V
50Hz		 Q (m³/h - L/min)
HP kW 0 7.5 9 12 15 18 21 24 27 30
0 125 150 200 250 300 350 400 450 500
CM32-250 C 12.5 9.5 11.9 20.1 70 68.5 68 67 65.5 63.5 61 58 50 36.5
CM32-250 B 15 11 14.4 24.2 82 81 80.5 79.5 78.5 77 74.5 71.9 65 52.5
CM32-250 A1 20 15 16 27.4 91 90 89.9 89 88 86 83.5 80.8 74 61.5
CM32-250 A 20 15 18.1 30.1 93 92.5 92 91.5 90.5 89.5 87.5 85 78.5 66

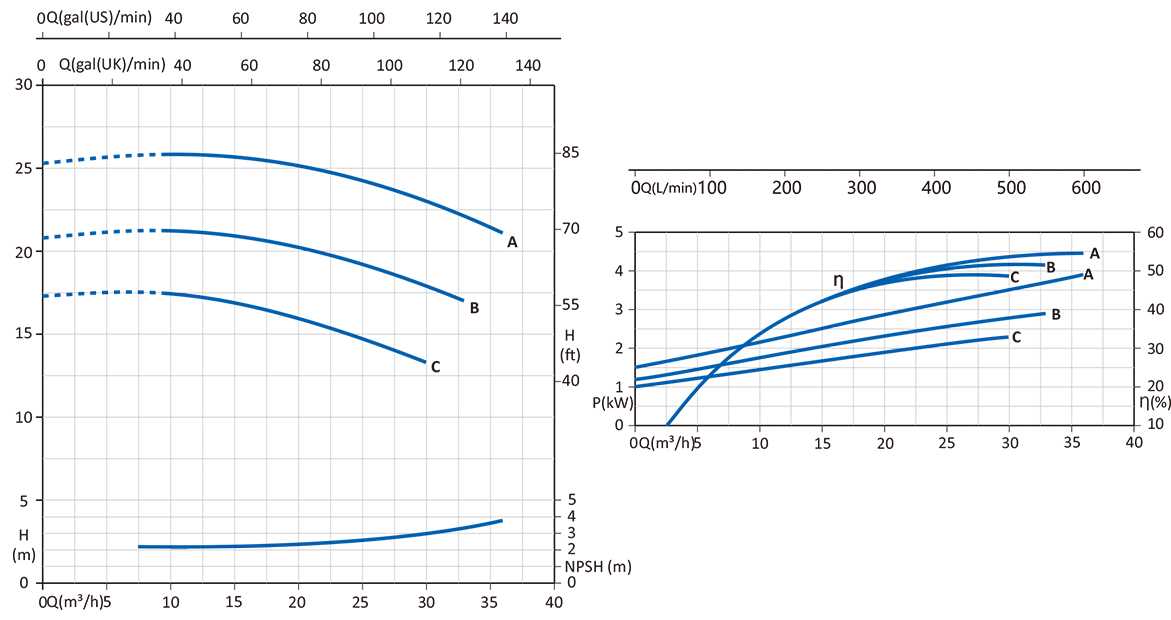

Model P2 P1
kW
3~		 3Ph
400V
50Hz		 Q (m³/h - L/min)
HP kW 0 7.5 9 12 15 18 21 24 27 30 33 36
0 125 150 200 250 300 350 400 450 500 550 600
CM40-125 C 2 1.5 2.3 4 17.4 17.6 17.5 17.3 16.9 16.4 15.8 15.1 14.2 13.3 - -
CM40-125 B1 3 2.2 2.9 5.2 20.7 - 21.3 21.2 21 20.6 20.1 19.4 18.7 17.9 17 -
CM40-125 A 4 3 4.1 7.1 25.2 - 25.8 25.8 25.6 25.4 24.9 24.4 23.7 22 22 21.1

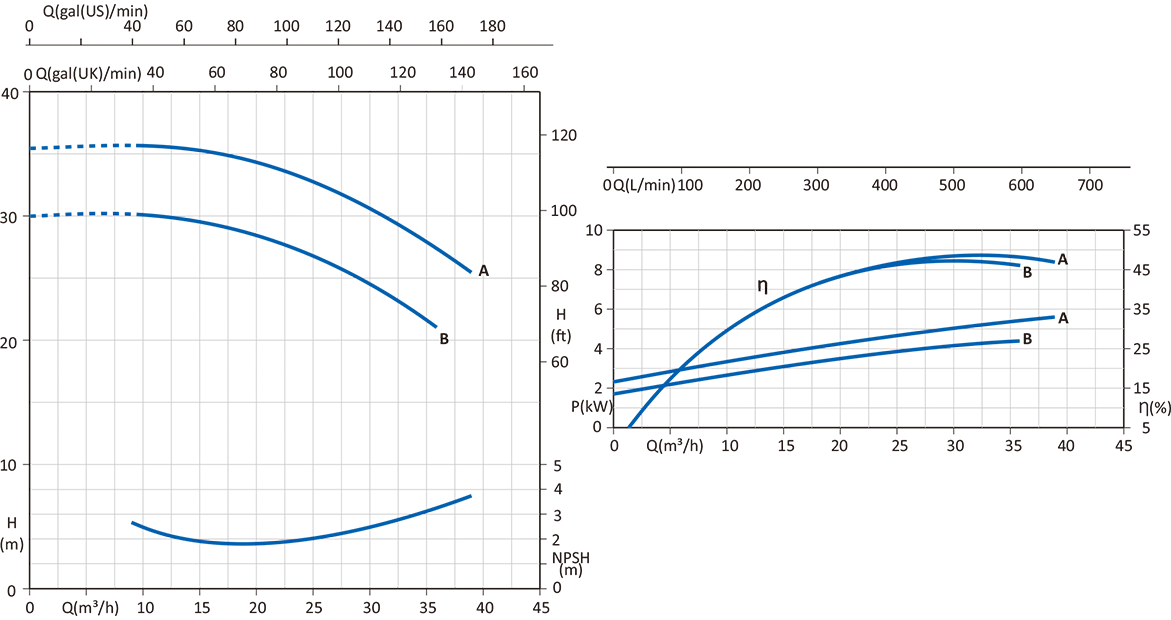

Model P2 P1
kW
3~		 3Ph
400V
50Hz		 Q (m³/h - L/min)
HP kW 0 9 12 15 18 21 24 27 30 33 36 39
0 150 200 250 300 350 400 450 500 550 600 650
CM40-160 B 4 3 4.4 7.4 30 30.1 30 29.6 29 28.2 27.1 25.9 24.4 22.8 21 -
CM40-160 A 5.5 4 5.7 9.9 35.4 35.6 35.5 35.3 35 34.2 33.2 32 30.6 29 27.3 25.4

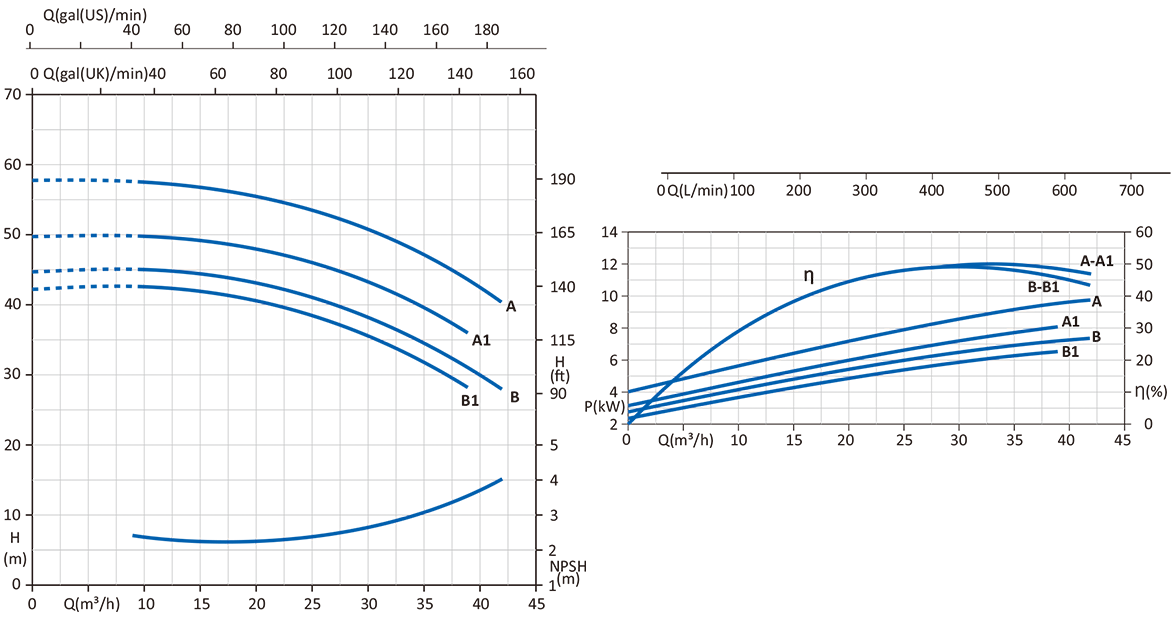

Model P2 P1
kW
3~		 3Ph
400V
50Hz		 Q (m³/h - L/min)
HP kW 0 9 12 15 18 21 24 27 30 33 36 39 42
0 150 200 250 300 350 400 450 500 550 600 650 700
CM40-200 B1 7.5 5.5 6.5 11.1 42.2 42.4 42.3 42.1 41.3 40.3 39.1 37.5 35.5 33.3 30.7 28 -
CM40-200 B 7.5 5.5 7.4 12.7 44.7 44.9 44.8 44.6 44 42.9 41.6 40 38.1 36.1 33.6 30.8 27.9
CM40-200 A1 10 7.5 8.1 13.8 49.7 49.7 49.4 49.4 48.7 47.9 46.6 45 43.2 41.1 38.6 35.9 -
CM40-200 A 10 7.5 9.8 16.5 57.7 57.7 57.1 57.1 56.3 55.4 54.1 52.5 50.5 48.5 45.9 43.3 40.3

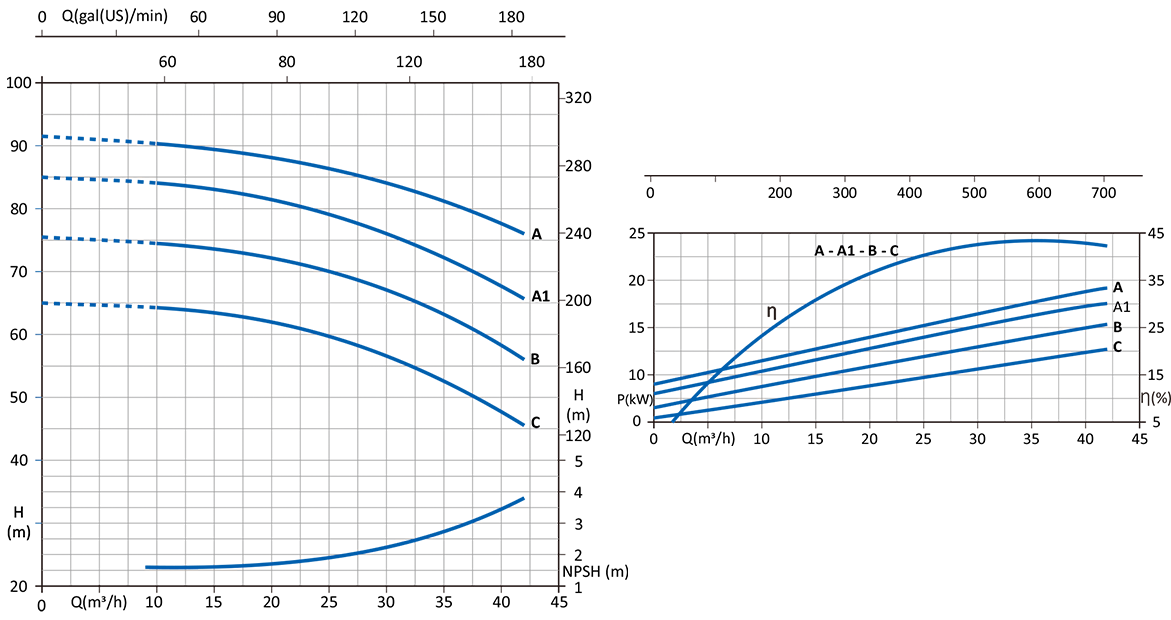

Model P2 P1
kW
3~		 3X
400V
50Hz
A		 Q (m³/h - L/min)
HP kW 0 9 12 15 18 21 24 27 30 33 36 39 42
0 150 200 250 300 350 400 450 500 550 600 650 700
CM40-250 C 12.5 9.2 12.6 20.1 65 64.3 63.9 63.3 62.6 61.5 60.2 58.8 56.9 54.5 51.6 48.5 45.5
CM40-250 B 15 11 14.4 24.2 75.5 74.6 74.2 73.5 72.7 71.7 70.4 69 67.2 65 62.5 59.5 56
CM40-250 A1 20 15 17.5 29.5 85 84 83.7 82.9 82.1 80.8 79.5 77.8 75.9 73.8 71.3 68.4 65.8
CM40-250 A 20 15 19 32 91.5 90.4 89.9 89.3 88.5 87.5 86.6 85.5 84 82.5 80.5 78.5 76

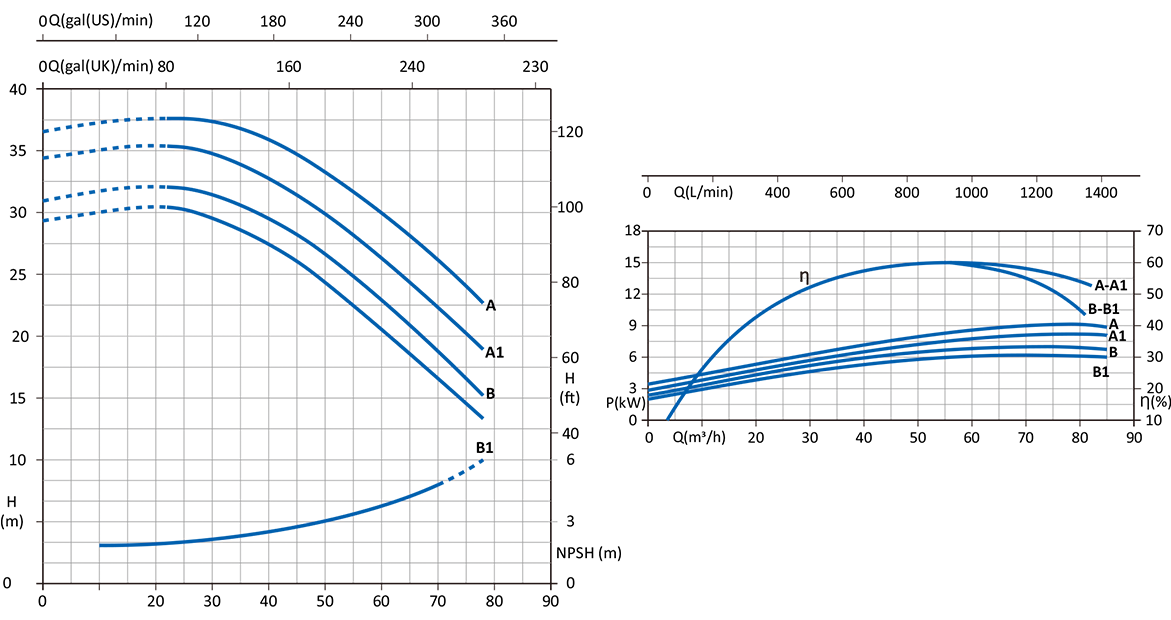

Model P2 P1
kW
3~		 3Ph
400V
50Hz		 Q (m³/h - L/min)
HP kW 0 21 24 27 30 33 36 39 42 48 54 60 66 72 78
0 350 400 450 500 550 600 650 700 800 900 1000 1100 1200 1300
CM50-160 B1 7.5 5.5 6.2 10.7 29.3 30.3 30.2 30 29.6 29 28.4 27.7 26.9 25.2 23.2 21 18.7 16.1 13.2
CM50-160 B 7.5 5.5 6.7 11.6 31.1 32.1 32 31.7 31.4 31 30.4 29.7 28.9 27.3 25.3 23.1 20.7 18 15.2
CM50-160 A1 10 7.5 8.3 14.1 34.3 35.4 35.3 35 34.7 34.3 33.8 33.2 32.4 30.7 28.7 26.5 24.3 21.8 19
CM50-160 A 10 7.5 9.4 15.8 36.7 37.9 37.8 37.7 37.4 37.1 36.6 36.1 35.4 33.9 32.1 30 27.8 25.3 22.6

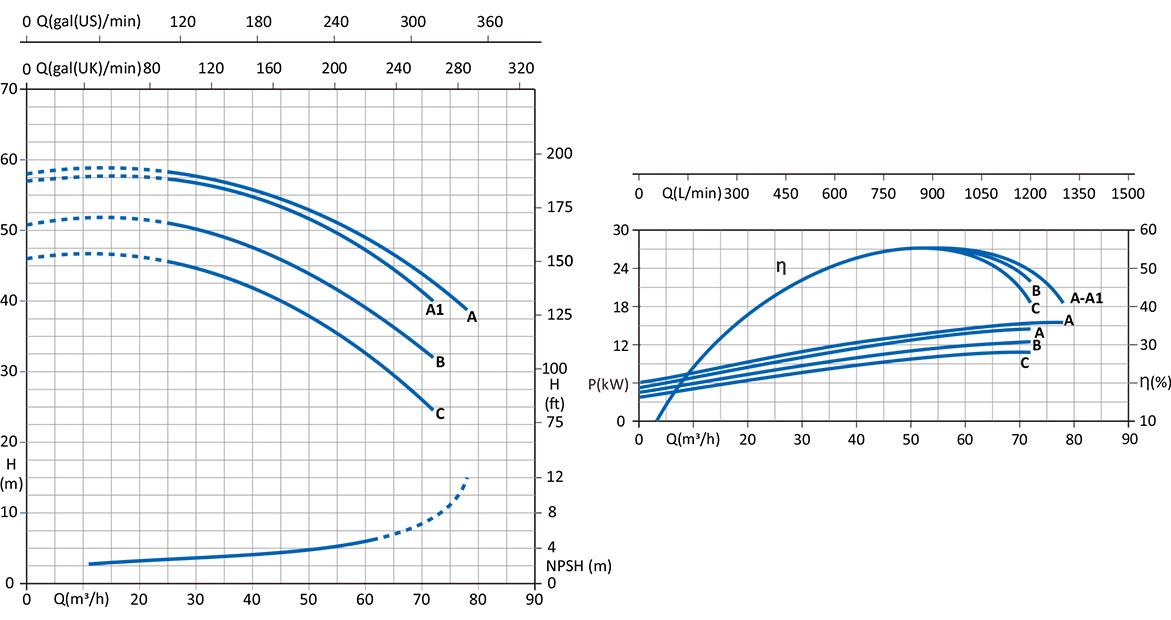

Model P2 P1
kW
3~		 3Ph
400V
50Hz		 Q (m³/h - L/min)
HP kW 0 24 27 30 33 36 39 42 48 54 60 66 72 78
0 400 450 500 550 600 650 700 800 900 1000 1100 1200 1300
CM50-200 C 12.5 9.2 10.8 18.5 46 46.5 45.1 44.5 43.7 42.9 41.8 40.8 38.5 35.9 33 29 24.5 -
CM50-200 B 15 11 12.4 21 50.8 51 50.5 50 49.3 48.5 47.7 46.8 44.7 42.2 39.5 35.9 32 -
CM50-200 A1 20 15 14.5 25.4 57 57.3 57.1 56.7 56.2 55.9 54.8 54.1 54.1 50.2 47.5 44 40 -
CM50-200 A 20 15 15.4 27 58 58.3 58 57.5 57.5 56.4 55.7 55 53.2 51.3 49 46.3 42.8 38.8

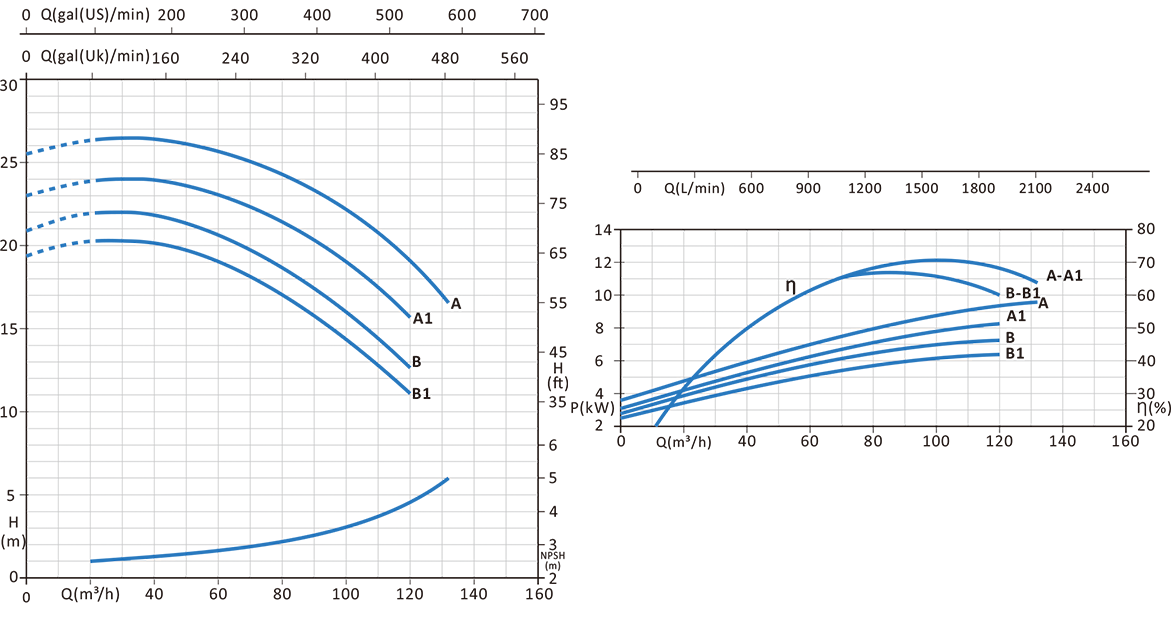

Model P2 P1
kW
3~		 3Ph
400V
50Hz		 Q (m³/h - L/min)
HP kW 0 30 33 36 39 42 48 54 60 66 72 78 84 96 108 120 132
0 500 550 600 650 700 800 900 1000 1100 1200 1300 1400 1600 1800 2000 2200
CM65-125 B1 7.5 5.5 6.4 11 19.4 20.4 20.4 20.3 20.2 20.1 19.8 19.4 19 18.5 17.9 17.2 16.5 15 13.3 11.1 -
CM65-125 B 7.5 5.5 7.2 12.6 20.9 22 22 21.9 21.8 21.7 21.4 21 20.6 20.1 19.6 19 18.3 16.6 14.7 12.6 -
CM65-125 A1 10 7.5 8.1 14 23 24.1 24.1 24 23.9 23.8 23.6 23.3 23 22.7 22.3 21.8 21.2 19.7 17.8 15.7 -
CM65-125 A 10 7.5 9.5 16.3 25.4 26.4 26.4 26.4 26.3 26.3 26.1 25.9 25.6 25.3 24.9 24.5 24 22.7 21 18.9 16.5

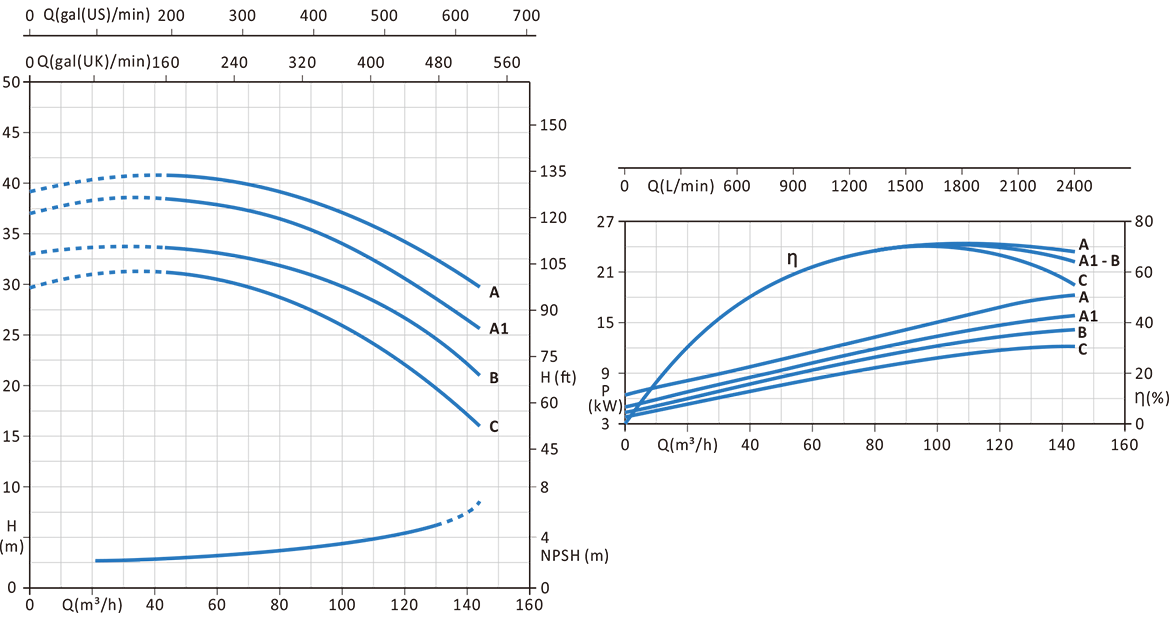

Model P2 P1
kW
3~		 3Ph
400V
50Hz		 Q (m³/h - L/min)
HP kW 0 42 48 54 60 66 72 78 84 96 108 120 132 144
0 700 800 900 1000 1100 1200 1300 1400 1600 1800 2000 2200 2400
CM65-160 C 12.5 9.2 11.7 19.5 29.8 31.2 31.1 30.8 30.5 30.1 29.6 29 28.3 26.6 24.6 22.1 19.3 16
CM65-160 B 15 11 13 22.5 33 34.6 34.4 34.2 34 33.7 33.3 32.8 32.1 30.6 28.8 26.7 24.1 21.1
CM65-160 A1 20 15 15.8 27.6 37.1 38.5 38.3 38.1 37.8 37.5 37.1 36.7 36.1 34.6 32.8 30.7 28.4 25.7
CM65-160 A 20 15 18 30 39.2 40.6 40.6 40.4 40.2 40 39.7 39.4 38.9 37.7 36.2 34.3 32.2 29.8

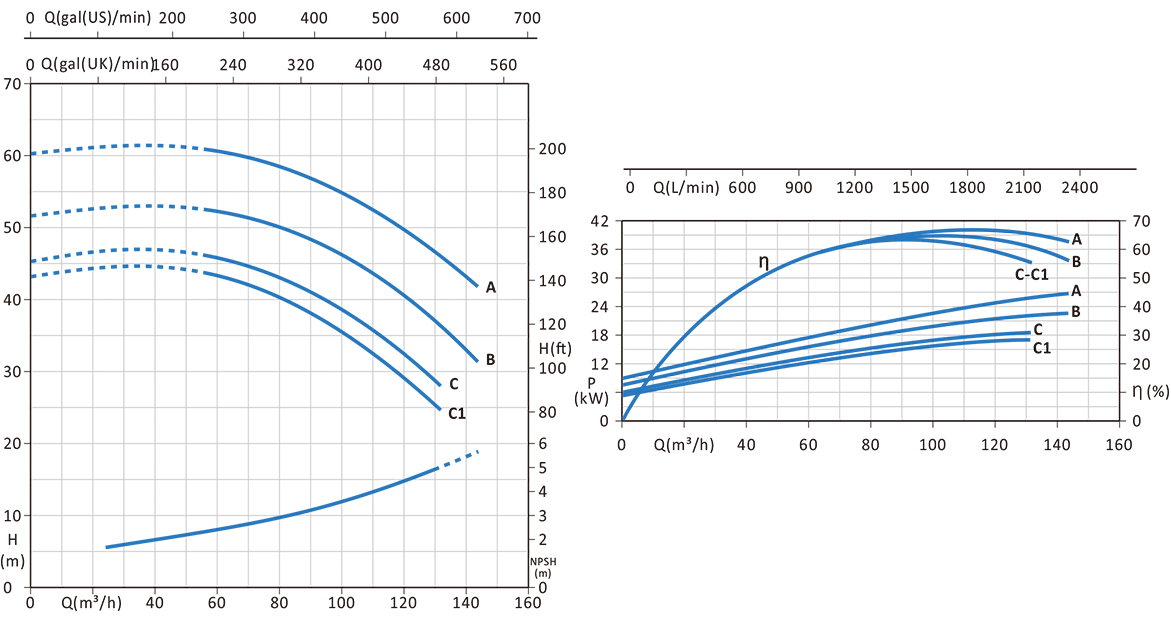

Model P2 P1
kW
3~		 3Ph
400V
50Hz		 Q (m³/h - L/min)
HP kW 0 54 60 66 72 78 84 96 108 120 132 144
0 900 1000 1100 1200 1300 1400 1600 1800 2000 2200 2400
CM65-200 C1 20 15 17.1 28.8 43.1 43.8 43.2 42.5 41.7 40.6 39.5 36.8 33.4 29.3 24.5 -
CM65-200 C 20 15 18.6 31.4 45.3 46.3 45.7 45.1 44.3 43.4 42.3 39.8 36.7 32.7 28 -
CM65-200 B 25 18.5 22.6 38.2 51.6 52.6 52.2 51.8 51 50.2 49.3 47.1 44.1 40.9 36.6 31.3
CM65-200 A 30 22.5 26.6 43.8 60.2 61 60.6 60.1 59.5 58.7 57.8 55.8 53.1 49.8 46.1 41.7

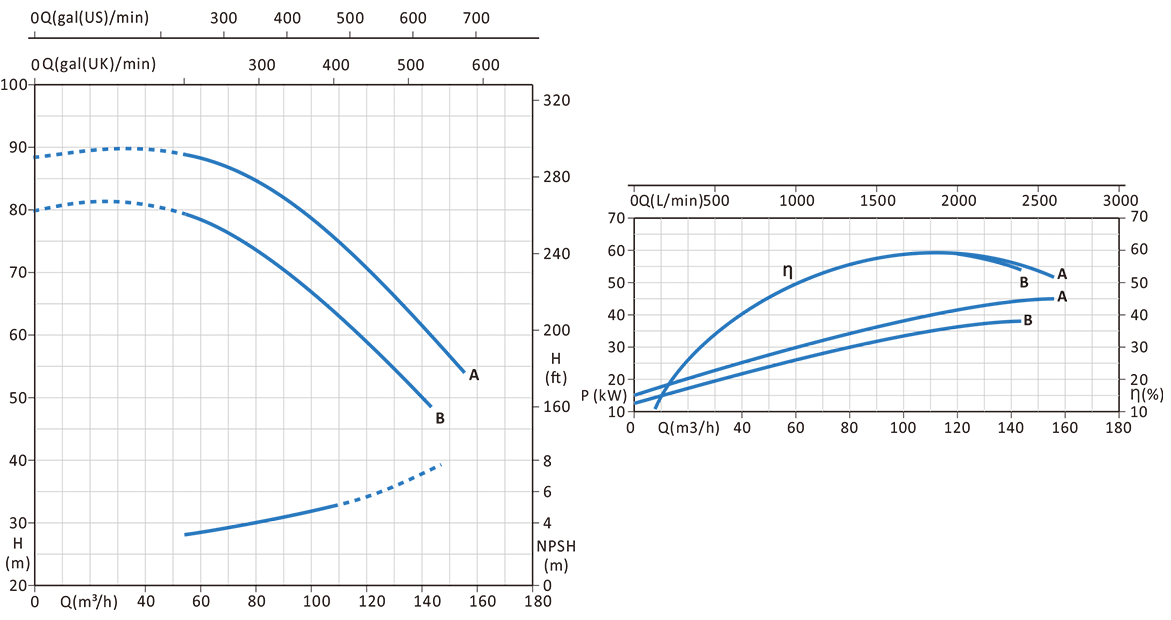

Model P2 P1
kW
3~		 3Ph
400V
50Hz		 Q (m³/h - L/min)
HP kW 0 54 60 66 72 78 84 96 108 120 132 144 156
0 900 1000 1100 1200 1300 1400 1600 1800 2000 2200 2400 2600
CM65-250 B 40 30 37.8 63.5 81 79.5 78.5 77.3 76 74.5 73 69.3 65 60 54.5 48.5 -
CM65-250 A 50 37 45 74.4 90 89.5 88.5 87.5 86.5 85.5 84 80.5 76.5 72 66.5 60.5 54

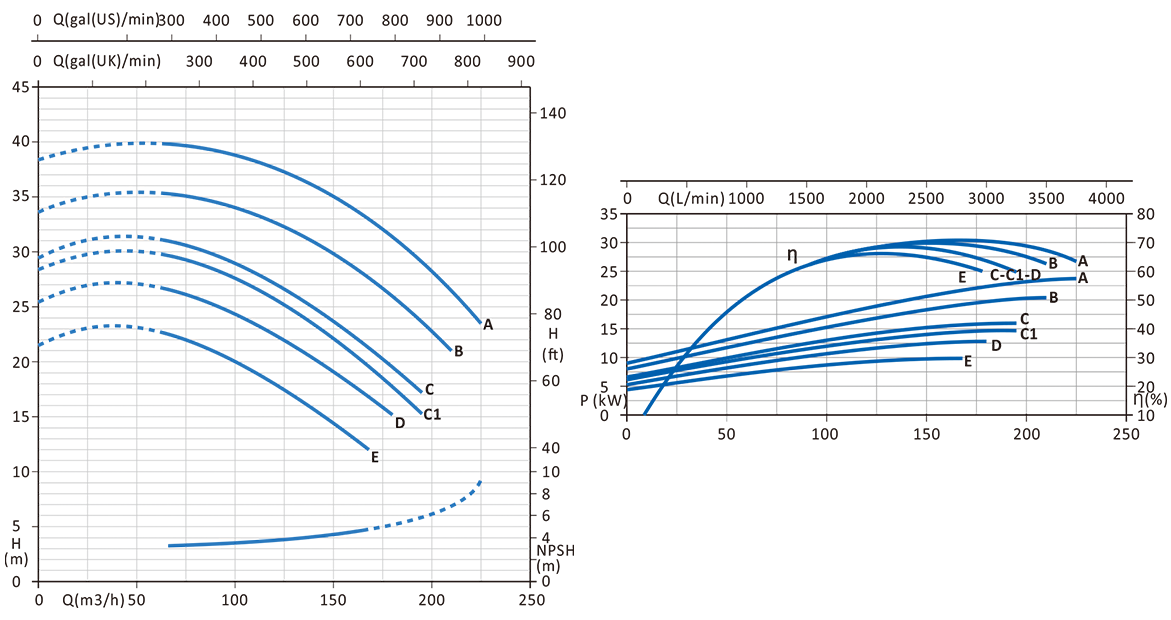

Model P2 P1
kW
3~		 3Ph
400V
50Hz		 Q (m³/h - L/min)
HP kW 0 66 72 78 84 96 108 120 132 144 156 168 180 195 210 225
0 1100 1200 1300 1400 1600 1800 2000 2200 2400 2600 2800 3000 3250 3500 3750
CM80-160 E 12.5 9.2 9.9 17.2 21.4 22.4 22.1 21.6 21.2 20.2 19.2 18 16.8 15.4 13.7 12 - - - -
CM80-160 D 15 11 12.7 22.1 25.4 36.4 26.1 25.7 25.3 24.4 23.6 22.5 21.3 20 18.5 16.9 15.1 - - -
CM80-160 C1 20 15 14.8 25.5 28.5 29.5 29.3 29 28.6 27.8 26.9 25.7 24.6 23.3 21.7 19.9 17.9 15.2 - -
CM80-160 C 20 15 15.9 27.4 29.7 30.7 30.5 30.3 29.9 29.2 28.1 27.1 26 24.7 23.1 21.5 19.7 17.2 - -
CM80-160 B 25 18.5 20.1 34.8 34 35 35 34.8 34.6 34 33.3 32.5 31.6 30.5 29.2 27.8 26 23.6 21 -
CM80-160 A 30 22.5 23.7 39.8 38.8 39.8 39.7 39.6 39.4 38.9 38.2 37.5 36.7 35.7 34.5 33.2 31.6 29.4 26.8 23.5

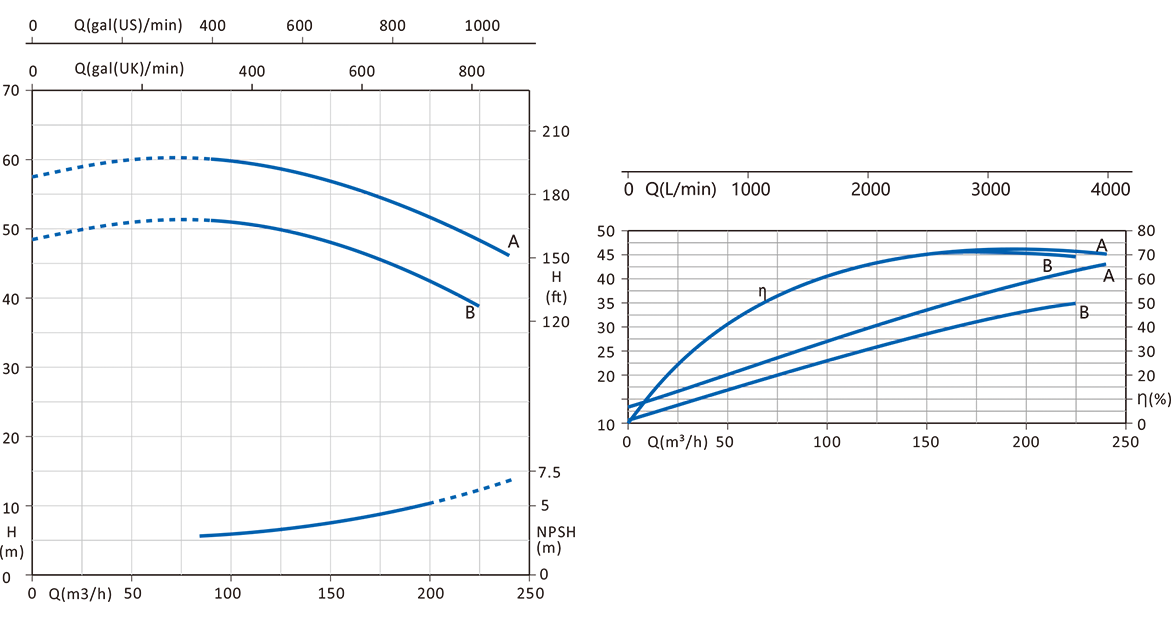

Model P2 P1
kW
3~		 3Ph
400V
50Hz		 Q (m³/h - L/min)
HP kW 0 84 96 108 120 132 144 156 168 180 195 210 225 240
0 1400 1600 1800 2000 2200 2400 2600 2800 3000 3250 3500 3750 4000
CM80-200 B 40 30 37.8 63.5 49 50.8 50.6 50.3 49.8 49.3 48.6 47.7 46.7 45.5 44.8 41.6 38.6 -
CM80-200 A 50 37 45 74.5 58 - 59.6 59.2 58.6 58 57.3 56.4 55.5 54.3 52.7 50.8 48.5 46.1

Application

Residential
Irrigation
Farms
Industrial Water Supply
General Water Supply
Drip & Sprinkler Systems
Water Treatment Plants
