What is submersible pump series?

It is a range of borewell pumps designed for different depths and capacities.

Submersible Pump Series | Borewell Pump Solutions

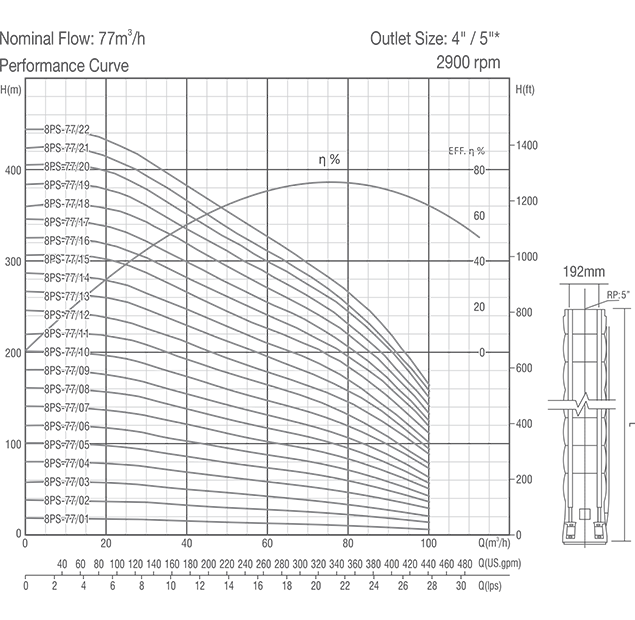

8PS-77 - Performance Table & Curve

Model	Motor Power		Q(m³/h) Q(lps)	0	57.6	64.8	72	79.2	86.4	96	Height L (mm)	Weight (kg)
Model	kW	HP	Q(m³/h) Q(lps)	0	16	18	20	22	24	26.7	Height L (mm)	Weight (kg)
8PS-77/01	5.5	7.5	Head (m)	19	18	15	14	13	11	6	571	26
8PS-77/02	7.5	10		38	37	33	30	28	23	14	699	30
8PS-77/03	11	15		58	58	50	46	42	33	21	827	34
8PS-77/04	15	20		80	79	69	64	58	47	30	955	38
8PS-77/05	18.5	25		101	98	86	79	74	59	36	1083	42
8PS-77/06	22	30		120	117	103	95	88	71	43	1211	46
8PS-77/07	26	35		141	137	121	111	102	83	71	1339	50
8PS-77/08	30	40		161	156	138	127	117	95	57	1467	54
8PS-77/09	30	40		181	176	154	142	131	106	63	1595	58
8PS-77/10	37	50		201	196	173	159	147	119	73	1723	62
8PS-77/11	37	50		217	216	190	176	162	131	77	1851	66
8PS-77/12	45	60		243	236	208	191	177	144	88	1979	70
8PS-77/13	55	75		264	257	227	210	193	156	93	2107	74
8PS-77/14	55	75		284	276	244	225	208	168	100	2235	78
8PS-77/15	55	75		303	299	263	242	223	183	110	2363	82
8PS-77/16	63	85		322	315	279	258	238	194	118	2491	86
8PS-77/17	63	85		342	335	296	273	252	204	124	2619	89
8PS-77/18	63	85		356	354	316	291	268	217	132	2747	93
8PS-77/19	75	100		380	375	331	307	283	229	140	2875	97
8PS-77/20	75	100		403	394	345	321	296	241	149	3003	101
8PS-77/21	75	100		419	409	367	334	308	249	156	3131	105
8PS-77/22	93	125		439	428	379	349	323	264	163	3259	109

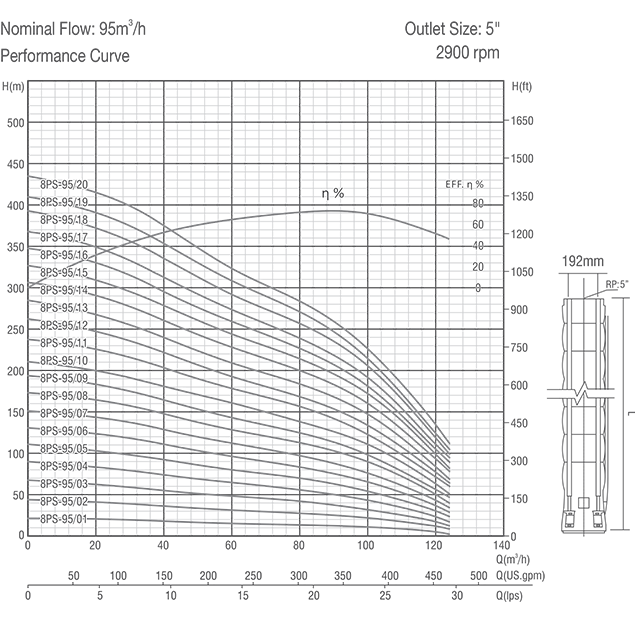

8PS-95 - Performance Table & Curve

Model	Motor Power		Q(m³/h) Q(lps)	0	20	40	60	80	100	120	126	Height L (mm)	Weight (kg)
Model	kW	HP	Q(m³/h) Q(lps)	0	5.6	11.1	16.7	22.2	27.8	33.3	35	Height L (mm)	Weight (kg)
8PS-95/01	5.5	7.5	Head (m)	20	19	17	14	13	11	6	2	617	21
8PS-95/02	9.3	12.5		42	40	35	30	27	22	13	8	746	24.7
8PS-95/03	13	17.5		66	61	54	47	42	32	19	12	875	28.6
8PS-95/04	18.5	25		88	82	73	64	56	43	26	17	1004	32.5
8PS-95/05	22	30		109	101	92	79	70	55	33	24	1133	36.4
8PS-95/06	26	35		129	122	110	96	84	66	40	29	1262	40.4
8PS-95/07	30	40		149	142	128	112	97	77	47	34	1391	44.3
8PS-95/08	37	50		171	163	147	132	113	91	54	40	1520	48.2
8PS-95/09	37	50		192	182	164	143	125	100	60	47	1649	52.1
8PS-95/10	45	60		209	198	180	161	139	112	68	51	1778	56.1
8PS-95/11	55	75		236	226	203	178	157	126	77	60	1907	60
8PS-95/12	55	75		261	246	221	193	169	137	83	64	2036	63.9
8PS-95/13	63	85		283	266	240	209	185	150	90	69	2165	67.9
8PS-95/14	63	85		304	289	261	228	201	164	100	78	2294	71.8
8PS-95/15	75	100		324	308	279	245	215	175	106	57	2423	75.7
8PS-95/16	75	100		346	329	295	260	228	185	112	89	2552	79.6
8PS-95/17	75	100		366	348	313	274	241	195	119	95	2681	83.6
8PS-95/18	93	125		391	371	335	293	258	210	128	99	2810	87.5
8PS-95/19	93	125		408	390	354	309	273	219	133	105	2939	91.4
8PS-95/20	93	125		433	414	375	324	285	231	145	112	3068	95.4
