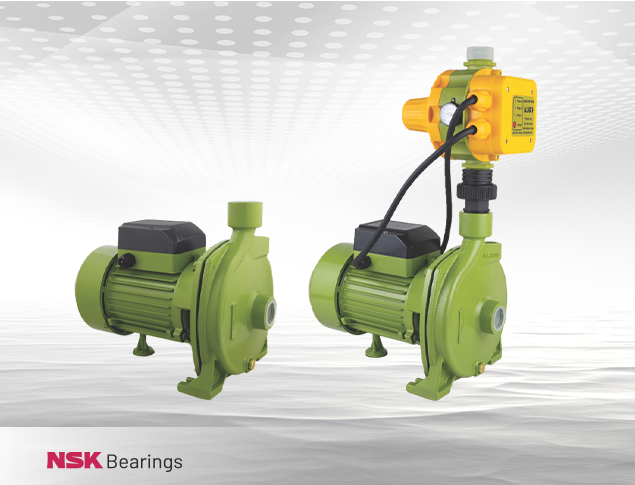

CM Series
Specification
| Power | 0.37 - 2.2 kW |
| Speed | 2900 rpm |
| Protection | IP44 / IP54 |
| Insulation Class | B / F |
| Versions |
1Ph - 230V (PSC) Inbuilt with T.O.P. 3Ph - 380 - 415V |
| Duty | S1 (Continuous) |
| Inlet & Outlet Size | 1" x 1", 1¼" x 1", 2" x 2", 3" x 3" |
| Suction Lift | 7m (Max) |
| Max. Liquid Temperature | 40°C |
| Ambient Temperature | 55°C (Max) |
| Pump Casing | Cast Iron |
| Motor Body | Aluminium |
| Impeller | SS304 / Brass |
| Shaft | SS304 |
| Mechanical Seal | Carbon & Ceramic |

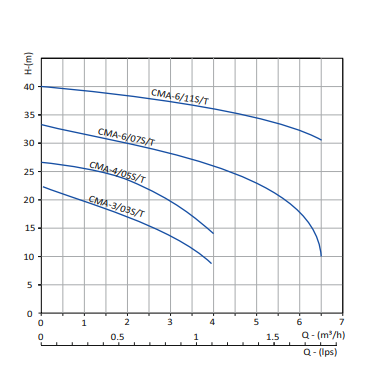

| Pump Model | kW | Pump Size In Inches (suc X Del) |
Discharge | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0.27 | 0.55 | 0.80 | 1.0 | 1.25 | 1.36 | 1.70 | |||
| lps (m³/h): 0 | 1.0 | 2.0 | 2.80 | 3.55 | 4.50 | 5.00 | 6.0 | ||||||||||
| CMA - 3/03S/T | 0.37 | 1 x 1 | 22 | 18 | 17 | 16 | 14 | 12 | 7 | - |
| CMA - 4/05S/T | 0.55 | 1 x 1 | 25 | 21 | 20.5 | 19 | 16 | 13 | 7.5 | - |
| CMA - 6/07S/T | 0.75 | 1 x 1 | 31 | 28 | 26 | 25.5 | 24.5 | 21.5 | 20.5 | 15 |
| CMA - 6/11S/T | 1.1 | 1 x 1 | 40 | 39 | 38 | 37 | 36 | 35 | 34 | 32 |

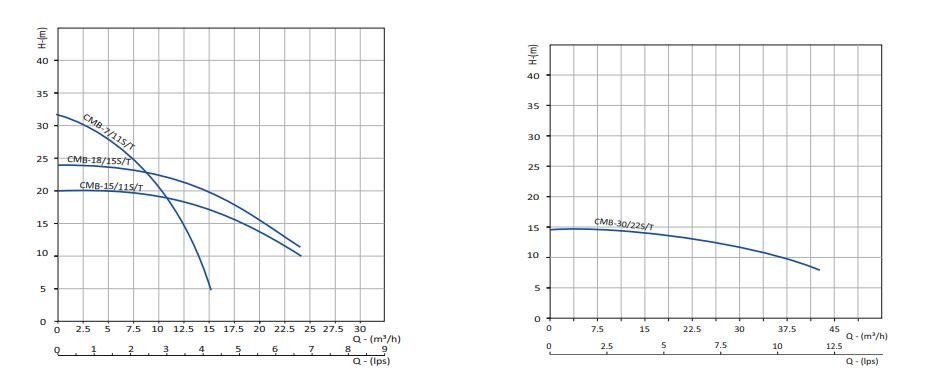

| Pump Model | kW | Pump Size In Inches (Suc. x Del.) |
Discharge | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 1.4 | 2.1 | 2.8 | 3.5 | 4.2 | 5.6 | 6.7 | |||
| lps (m³/h): 0 | 5 | 7.5 | 10 | 12.5 | 15 | 20 | 24 | ||||||||||
| CMB - 6/11S/T | 1.1 | 1¼ x 1 | 32 | 28 | 25 | 21 | 15 | 5 | - | - |
| CMB - 15/11S/T | 1.1 | 2 x 2 | 20 | 19.5 | 19.5 | 19 | 18.5 | 17.5 | 13 | 10 |
| CMB - 18/15S/T | 1.5 | 2 x 2 | 24 | 22 | 23 | 22.5 | 21 | 20 | 15 | 11.5 |
| Pump Model | kW | Pump Size In Inches (Suc x Del) |
Discharge | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 2.8 | 4.17 | 5.56 | 6.94 | 8.33 | 9.72 | 11.11 | 12.5 | |||
| lps (m³/h): 0 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | |||||||||||
| CMB - 30/22S/T | 2.2 | 3 x 3 | 14.5 | 14 | 13.5 | 13 | 12.5 | 12 | 10.5 | 9 | 8 (42 m³/h) |

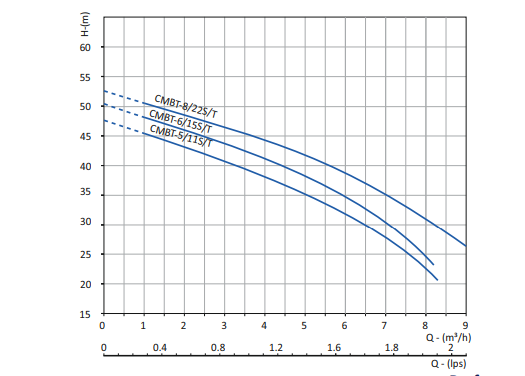

| Pump Model | kW | Pump Size In Inches (Suc x Del) |
H (m) | Discharge | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lps | ||||||||||||
| 0 | 0.6 | 0.8 | 1.1 | 1.4 | 1.7 | 1.9 | 2.2 | 2.5 | ||||
| 0 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ||||
| CMBT - 5/11S/T | 1.1 | 1¼ x 1 | 47.5 | 43 | 41 | 38 | 35.5 | 32 | 27.5 | 22 | - | |
| CMBT - 6/15S/T | 1.5 | 1¼ x 1 | 50.5 | 47 | 43 | 41 | 38 | 35 | 30 | 25 | - | |
| CMBT - 8/22S/T | 2.2 | 1¼ x 1 | 52.5 | 48.5 | 46 | 44 | 42 | 38.5 | 35 | 31 | 26 | |
Application
Residential
Irrigation
Farms
Industrial Water Supply
General Water Supply
Drip & Sprinkler Systems
