JS Series
Specification
| Power | 0.37 – 1.1kW |
|---|---|
| Speed | 2900 rpm |
| Protection | IP 54 / IP 44 |
| Insulation Class | “B” |
| Versions |
1Ph – 230V, (PSC) Inbuilt with T.O.P. 3Ph – 380 – 415V |
| Duty | S1 (Continuous). |
| Inlet & Outlet Size | 1” × 1”, 1¼” × 1” (BSP) |
| Suction Lift | 7m (Max) |
| Max. Liquid Temperature | +5°C ~ +60°C |
| Ambient Temperature | 50°C (Max) |
| Pump Casing | SS 304 |
|---|---|
| Motor Body | Aluminium |
| Impeller | SS 304 |
| Shaft | SS 304 |
| Mechanical Seal | Carbon & Ceramic |

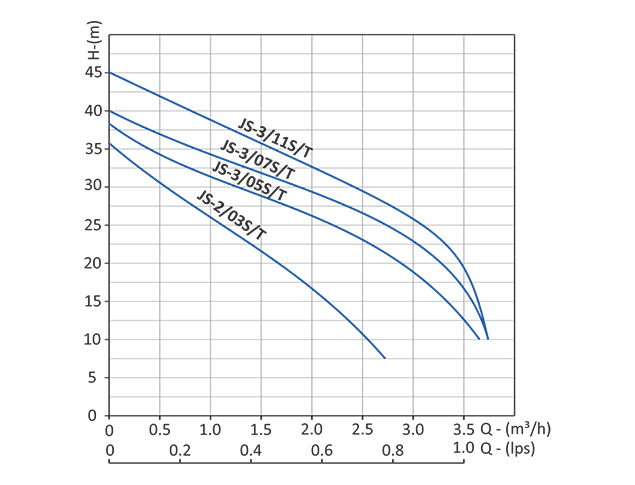

| Pump Model | Power | Pump Size In Inches (Suc × Del) |
Discharge | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lps | 0 | 0.1 | 0.3 | 0.4 | 0.6 | 0.7 | 0.8 | 1.0 | 1.04 | |||||
| m³/h | 0 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 3.75 | |||||
| JS - 2/03S/T | 0.37 | 1 × 1 | H(m) | 36 | 31 | 26.5 | 21.5 | 17 | 11 | 7 (2.75m³/h) |
- | - | ||
| JS - 3/05S/T | 0.55 | 1 × 1 | 38 | 34 | 31.5 | 28.5 | 26.5 | 23 | 18.5 | 12.5 | 10 (3.7m³/h) |
|||
| JS - 3/07S/T | 0.75 | 1 × 1 | 40 | 37 | 34 | 32 | 29 | 26.5 | 23 | 17 | 10 | |||
| JS - 3/11S/T | 1.1 | 1 × 1 | 45 | 42 | 38.5 | 36 | 32.5 | 29.5 | 26.5 | 19.5 | 10 | |||
Application
Residential
Irrigation
Farms
Industrial Water Supply
Pressure Boosting Unit
Food Processing Industries
