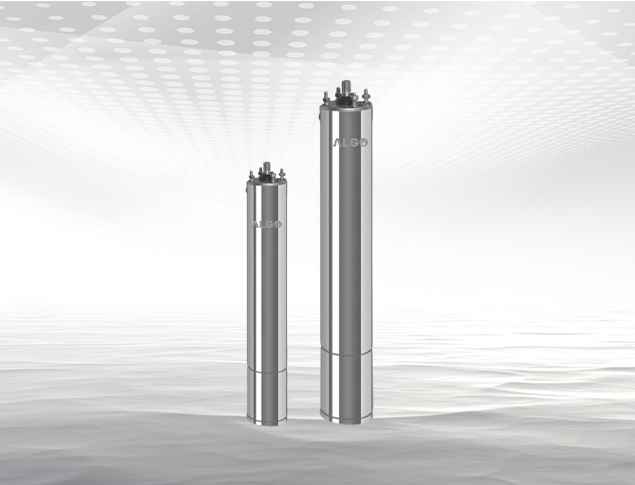

Submersible Motor Series | Oil & Water Filled Motors | Algo Pumps

Materials of Construction

Motor Shell	SS304
Motor Shaft	SS410
Upper Bearing	Ball Bearing
Lower Bearings	Angular Contact Bearing
Lead Cable	PVC/EPDM Rubber Cable
Oil Seal	NBR
Diaphragm	NBR
Mechanical Seal	Carbon / Ceramic

Technical Specification		50Hz
Nominal Dia	4" Motor (100mm)
Max. Outer Dia	95mm
Power Range	1Ph	0.37 to 2.2 kW
Power Range	3Ph	0.37 to 7.5 kW
Version	1Ph	220 - 230V / 50Hz
Version	3Ph	380 - 415V / 50Hz
Nominal Speed	2850 rpm
Direction of rotation	Counter Clockwise
Protection	IP 68
Insulation	Class F
Duty	S1 continuous
Max. Submergence Depth	150m
Max. Liquid Temp.	33°C
Min. cooling flow	0.15 m/s
Max. Starts per hour	20 times
Starting method	1Ph	CSR
Starting method	3Ph	DOL
Shaft & Mounting	NEMA Standard
Cable leadout	Permanently Connected 3 & 4 Core flat cable

Technical Details

50Hz, Single Phase 230V, 3 Wire Motor (CSR)

Model	kW	HP	Full Load Current (A)	Starting Current (A)	Eff. (%)	P.F. cosΦ	Capacitor (MFD)	Torque (Nm)	Thrust Load (N)	Height (mm)	Weight (kg)	Cable Size (Sq mm)	Cable Length (m)
V4K-03M	0.37	0.5	3.6	10.4	53	0.88	15	1.24	1500	357	8	1.5	1.5
V4K-05M	0.55	0.75	4.8	13.6	58	0.89	20	1.84	1500	377	9	1.5	1.5
V4K-07M	0.75	1	6.3	17.6	60	0.90	30	2.5	1500	402	10	1.5	1.5
V4K-11M	1.1	1.5	8.6	21.1	64	0.90	40	3.6	2500	432	11	1.5	1.5
V4K-15M	1.5	2	10	26.4	70	0.94	50	5	2500	475	12	2	1.5
V4K-22M	2.2	3	14	39.9	74	0.96	60	7.35	2500	520	14	2.3	2

50Hz, Three Phase 380V Motor (D.O.L.)

Model	kW	HP	Full load Current (A)	Starting Current (A)	Eff. (%)	P.F. cosΦ	Torque (Nm)	Thrust Load (N)	Height (mm)	Weight (Kg)	Cable Size (Sq mm)	Cable Length (m)
V4K-03T	0.37	0.5	1.07	5.2	63	0.8	1.24	1500	392	8	1.5	1.5
V4K-05T	0.5	0.75	1.9	9.3	64	0.81	1.84	1500	407	8	1.5	1.5
V4K-07T	0.75	1	2.4	11.1	68	0.81	2.5	1500	427	10	1.5	1.5
V4K-11T	1.1	1.5	3.15	13.8	80	0.82	3.6	2500	447	11	1.5	1.5
V4K-15T	1.5	2	4	17.5	82	0.83	5	2500	482	14	1.5	2
V4K-22T	2.2	3	6	28	72	0.83	7.35	2500	542	14	1.5	2
V4K-30T	3	4	7	30	73	0.85	8	2500	602	19	2	2
V4K-37T	3.7	5	9.6	48	75	0.83	13.4	2500	632	19	2	2
V4K-40T	4	5.5	11	55	82	0.83	15.3	2500	642	21	2	3
V4K-55T	5.5	7.5	13.6	71.1	78	0.85	18.4	4500	762	25	2.3	3
V4K-75T	7.5	10	17.6	87.8	79	0.85	25	4500	882	31	2.3	3

Application

Booster

Domestic

Fountains

Gardens

Industries

Irrigation

Mining

Sprinkler
